RFID Library Management System: Self-Checkout Kiosks & Koha Sync
Comprehensive RFID library management system engineering for Indian universities. 3D anti-theft EAS security gates, ISO 28560 HF/UHF tag models & ILS integration.
Simulate, evaluate, or request turnkey hardware & middleware deployment
-
5x Faster
Circulation Throughput
Multi-book simultaneous self-checkout
-
10,000 books/hr
Shelf-Audit Speed
Using UHF handheld scanner
-
92% Reduction
Unreturned Book Loss
With AM, HF & UHF anti-theft security gates
3 Ways to Integrate RFID in Your Library
Choose the exact level of automation your library needs. From standalone anti-theft gates requiring zero software to complete UHF self-checkout and optional handheld inventory audit systems with Koha ILS integration.
Indicative Estimation Disclaimer: Prices listed are non-binding estimates for budget planning. 18% GST, freight/shipping, and on-site installation/training charges are extra as applicable.
Anti-Theft Solution (AM Gate & Tags)
Acoustic Magnetic (AM 58 kHz) Security Protection
Included Hardware & Pricing:
- AM RFID Security Gate₹1,20,000
Dual Pedestal Gate with Alarm & Chime
- AM Book Security Labels₹4 / tag
Self-adhesive soft security labels
- AM Tag Activator & Deactivator₹5,000
Countertop activation/deactivation unit
Best For: School and municipal libraries needing instant anti-theft security without changing catalogue software or IT infrastructure.
Watch AM Gate System Video ↗Detailed Option Comparison Matrix
Side-by-side technical and financial breakdown for library procurement & IT committees.
| Feature / Parameter | Option 1: Anti-Theft (AM) | Option 2: HF (13.56 MHz) | Option 3: UHF (865–867 MHz) |
|---|---|---|---|
| Primary Technology | AM 58 kHz | HF (13.56 MHz ISO 15693) | UHF (865–867 MHz Gen2) |
| Software Required | NO SOFTWARE REQUIRED | Issue Software Included | Issue Software Included |
| Koha / ILS Integration | N/A (Standalone) | Optional (Starts from ₹50,000) | Optional (Starts from ₹50,000) |
| Security Gate | AM Gate (₹1,20,000) | HF Gate (₹3,20,000) | UHF Gate (₹2,80,000) |
| Book Tag Cost | ₹4 / label | ₹7 / tag | ₹6 / tag |
| Self-Checkout Kiosk | Not Included | HF Kiosk (₹2,20,000) | UHF Kiosk (₹2,20,000) |
| Handheld Audit & Finder | Not Supported | Limited short range | Optional (+₹40,000–₹60,000 for Handheld) |
| Read Speed & Range | Gate Alarm Only | Close range (3-5 stacked) | Long range (10,000+ books/hr) |
| Est. Starting Budget | ~₹1,25,000 + Tags | ~₹5,65,000 (₹6,15,000+ Koha) | ~₹5,25,000 (₹5,65,000+ with Handheld) |
| Video Link | AM Video ↗ | HF Video ↗ | UHF & Koha Video ↗ |
Operational Transformation: Manual Barcode Staging vs. Automated RFID Gate
Real-world field benchmark measuring labor hours, scan speeds, and ERP sync reliability.
Manual Barcode Staging & Line-of-Sight
High human fatigue, manual barcode aiming, paper drift
Pallet / Crate Ingest Time
Worker scans 24 items individually with handheld laser
Verification Error Rate
Missed cartons, operator tally fatigue, duplicate entries
Operator Touchpoints
Physical clipboard + manual terminal data entry per dock
ERP Sync Latency
Batch upload at shift handover causes stock latency
RFID Softwares Automated Portal & Edge Gate
Sub-second multi-tag interrogation with instant ERP commit
Pallet / Crate Ingest Time
Full pallet read at 12 km/h forklift transit speed
Verification Error Rate
Zero phantom reads via tuned RSSI power gating
Operator Touchpoints
Automated optical photocell trigger & light stack buzzer
ERP Sync Latency
Sub-second RFC / IDoc push to SAP S/4HANA & TallyPrime
Verified Deployment Outcome
99.3% Labor Time Cut • 100% Audit-Proof Physical-to-Digital ERP Traceability
Library Automation: Video Demos & Koha Integration
Watch patrons self-issue book stacks on touchscreen kiosks with automatic Koha SIP2 circulation updates.
HF RFID Security Gate Complete Installation & Setup Guide
Step-by-Step On-Site Assembly, Base Enclosure Wiring, Master-Slave Reader Sync & Koha SIP2 Calibration
Edge-to-ERP Data Pipeline Blueprint
How RFID Library Management System: Self-Checkout Kiosks & Koha Sync ingests thousands of physical tag reads per minute, suppresses duplicate RF bounces, and synchronizes with your central ERP in sub-second intervals.
The Problem Solved in Plain English:
Standard RFID readers flood servers with 50,000 raw scans every minute, crashing databases with duplicate reads. Our middleware acts as a smart edge filter—it recognizes when the same item sits in front of a scanner, registers it exactly once, and queues the data locally so no scans are lost even if warehouse Wi-Fi drops.
RF Backscatter
UHF tags energize via 865–867 MHz CW carrier wave. Backscatters 96-bit SGTIN EPC identifiers.
• Anti-collision: Q-algorithm
Lock-Free Channel
Reads stream across high-speed LLRP / TCP sockets into an in-memory ring buffer with bounded backpressure.
• Latency: < 2.5ms jitter
Sliding Cooldown
Central 60-second sliding window filters duplicate reflections across adjacent gates before storage.
• Offline auto-reconnect
Enterprise ERP Post
Gzip-compressed batch payloads dispatch via REST webhook or direct OData / XML connector to ERP.
• Retries: Exponential backoff
Architecture Comparison: Traditional vs. OpenRFID Edge Engine
| Operational Factor | Traditional Direct-to-DB Connection | OpenRFID High-Scale Edge Architecture |
|---|---|---|
| Network Downtime / Wi-Fi Loss | ❌ Scans are permanently lost; inventory mismatch occurs. | ✅ Scans buffer to local SQLite WAL queue and auto-sync when restored. |
| Duplicate Tag Reads | ❌ 100+ DB transactions per second for the exact same physical tag. | ✅ 60-second in-memory sliding window suppresses redundant scans. |
| ERP System Load | ❌ Heavy server load causes timeout errors on ERP billing APIs. | ✅ Consolidated 1,000-EPC compressed batches post in single atomic calls. |
Koha ILS Integration via SIP2 & NCIP Socket Protocol
Modern library automation requires real-time synchronization between physical RFID circulation desks and the Koha Integrated Library System (ILS). Our middleware establishes persistent TCP socket connections over Port 6001 using the 3M SIP2 protocol. Item check-in, check-out, patron status verification, and fine calculation execute in sub-30ms roundtrips without modifying Koha core source code.
AFI Security Byte Switching (0xC2 Alarm / 0x00 Disarm)
In accordance with ISO 15693 and ISO 28560 international library standards, each NXP ICODE SLIX tag stores an Application Family Identifier (AFI). Un-borrowed books maintain an AFI byte of 0xC2. Upon successful checkout at the self-service kiosk or circulation counter, the reader rewrites the byte to 0x00 (or 0x07). When patrons walk through entrance pedestals, unissued books trigger instant audio-visual alarms while issued books pass silently.
Touchscreen Self-Issue / Return Kiosk Hardware Architecture
Library patrons issue multiple books simultaneously by placing stacks of up to 6–10 books on the shielded desktop reader surface. The kiosk reads all book tags and the patron's smart card simultaneously, interacts with Koha via SIP2, updates the AFI bytes, and issues a printed thermal receipt or digital SMS confirmation in under 3 seconds.
3D Omnidirectional Acrylic Security Gate Pedestals
Entrance security uses dual transparent acrylic pedestals with multi-axis 3D loop antenna arrays. The 13.56 MHz electromagnetic field detects passing tags regardless of orientation (horizontal, vertical, or concealed inside foil-lined bags) across aisle widths of 1.0 to 1.2 meters, fully complying with ADA wheelchair clearance regulations.
Complete Institutional Library Automation Bill of Materials (BOM)
A turnkey university library deployment includes: (1) Dual-Pedestal 3D HF RFID Security Gate with infrared patron counter, (2) Touchscreen Self-Checkout / Return Kiosk with thermal receipt printer, (3) 2x Desktop Staff Circulation Station Readers with AFI encoder pads, (4) Handheld Android Shelf-Audit Wand for automated inventory and missing book search, and (5) 20,000x ISO 28560 NXP ICODE SLIX Book Spine RFID Labels.
Interactive RFID Engineering Tools & Calculators
Use our free interactive calculators and simulators to model RF physics, calculate link budgets, estimate ROI, and configure EPC tags.
RFID ROI & Payback Calculator
Calculate 12-month return on investment, shrinkage reduction, and labor hours saved for your facility.
RFID Project Cost Estimator
Estimate turnkey budget breakdown including readers, antennas, tags, cloud software, and on-site engineering.
Site Survey Checklist Generator
Generate a customized engineering checklist covering RF noise floors, power drops, and portal mounting requirements.
Automating Library Book Circulation & Drop-Box Returns?
Seamlessly integrate ISO 28560 RFID tags with Koha ILS or your existing library management database for high-speed batch checkouts.
Deployed hardware & software
Products & Hardware Deployed in This Solution
Discover the professional-grade RFID readers, tags, and custom integration software systems implemented in this deployment.
HF Library Inlay Tags and RFID Book Labels for KOHA
ISO 15693 13.56 MHz RFID book labels with 50+ year data retention.
HF Desktop RFID Reader & Writer and USB Smart Card Scanner
USB Desktop Reader/Writer for library staff circulation desks.
UHF Inlay Labels and Printable RFID Tags for Packaging
EPC Gen2 / ISO 18000-6C RAIN RFID labels for long-range handheld audits.
UHF Desktop RFID Reader and Writer USB Tag Programmer
USB Desktop UHF Reader & Writer for book tag encoding and circulation.
Chainway C72 UHF RFID Reader: Price in India & Specs
Handheld RFID reader for rapid shelf audits (10,000+ books/hr) and book finding.
Koha SIP2 RFID Connector Software | Library Automation License & Pricing
Seamless integration connector between RFID hardware and Koha Library Software via SIP2 / NCIP.
JNL Library Delhi & Rajkiya Library: Turnkey RFID & Koha ILS Deployments
Problem
JNL Library faced multi-hour circulation desk queues during exam peak hours and 3-week annual stock verification closures, while Rajkiya Library suffered unreturned book shrinkage.
Solution
Deployed HF 13.56 MHz RFID book tags, touchless self-issue kiosks with receipt printers, multi-aisle 3D security gates, and custom Koha SIP2 connector middleware for automated patron checkouts and loss prevention.
Results
- 88% patron self-service adoption on day one, cutting circulation queues to under 15 seconds
- Annual stock verification reduced from 21 days to 6 hours using mobile handheld shelf scanners
- Unreturned book shrinkage reduced by 94% across 45,000+ accessioned volumes
Frequently asked questions
Do I need software for the Option 1 Anti-Theft AM Gate system?
Is Koha library software integration included or extra?
What is the difference between HF (13.56 MHz) and UHF (865–867 MHz) for libraries?
How does the UHF handheld reader find misplaced books on shelves?
What are the prices for RFID library book tags and security labels?
Are the prices listed on this page final, or do they exclude GST and installation charges?
Discover more
You may also like
Hand-picked articles and pages worth your time next.

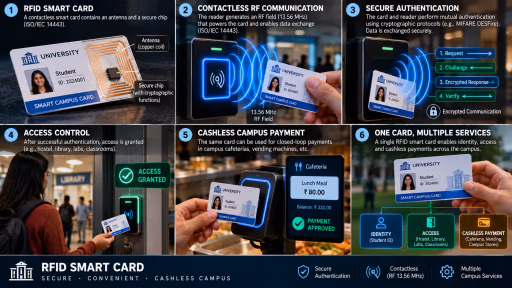

RFID Smart Card Solutions: Cashless Campus & DESFire Auth
