RFID Products & IoT Hardware in India

Industrial RAIN UHF readers, handheld scanners, smart gates, on-metal tags, and ERP middleware from RFID Softwares.

Architecture & Selection

Auto-ID Hardware & Software Selection Guide

Deploying an enterprise Auto-ID ecosystem requires matching physical hardware capabilities to the operating environment. From high-speed conveyor sorting to multi-acre yard audits, our product catalog spans four interoperable layers: edge readers, precision antennas, surface-tuned transponders, and intelligent middleware connectors.

Active vs Passive UHF RFID Hardware

Passive UHF (RAIN) systems operate without internal tag batteries, harvesting RF power directly from reader antenna beams to achieve 8–15 meter read ranges at negligible per-tag costs (₹3–₹45). Active RFID systems use battery-powered beacons for continuous multi-hundred-meter yard tracking at higher unit costs (₹1,500+). For 98% of retail, warehouse, and healthcare asset tracking rollouts, passive UHF delivers the highest ROI.

Scaling from SME Audits to Distribution Centers

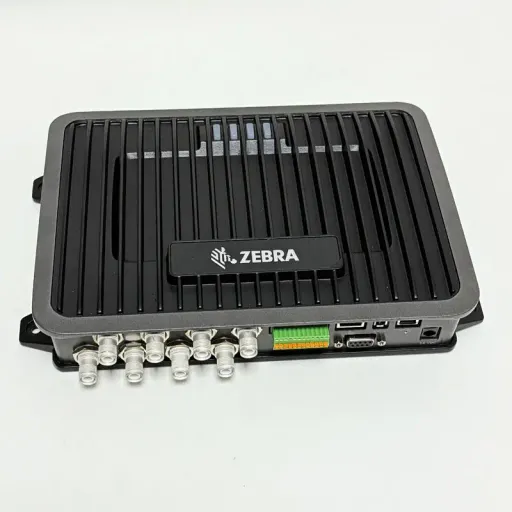

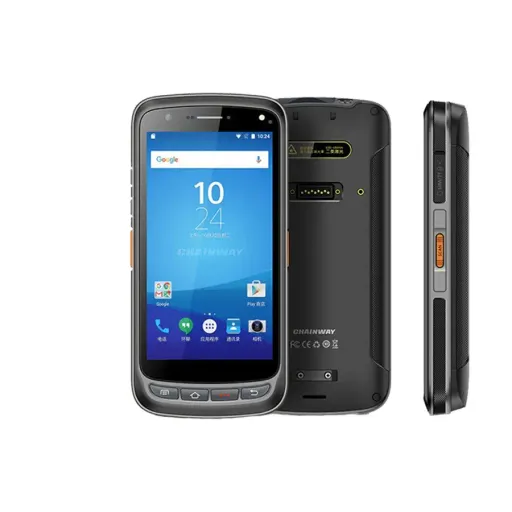

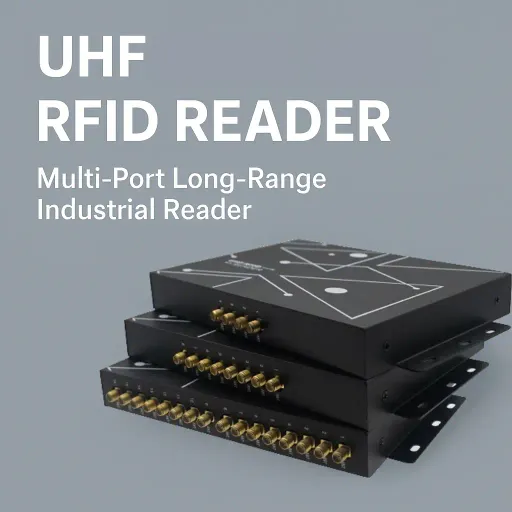

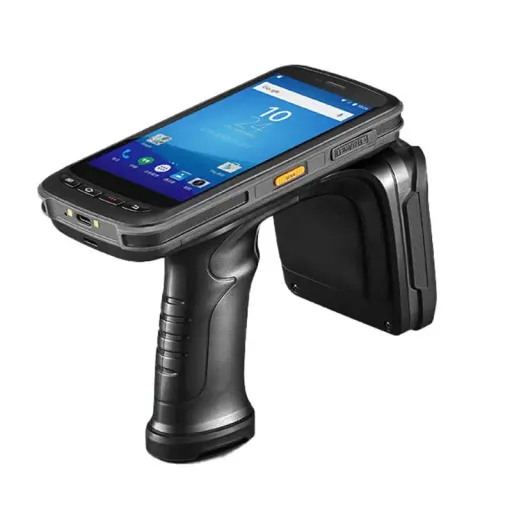

Small manufacturing units typically begin with mobile Android handheld terminals (such as the Chainway C72) to cut inventory cycle count times from hours to minutes. As dispatch velocity grows, facilities scale by installing automated 4-port fixed dock door portals with optical direction sensors, eliminating manual operator scans entirely.

WPC GSR 564(E) Regulatory Compliance (865–867 MHz)

In India, commercial RFID equipment must strictly adhere to the Wireless Planning & Coordination (WPC) frequency band of 865–867 MHz with 4W EIRP limits. Utilizing US (902–928 MHz) or European (865–868 MHz) readers without localized frequency calibration causes cross-band RF interference and regulatory non-compliance.

Read complete WPC India Frequency & Power Guide →

Hardware-Agnostic Middleware Integration

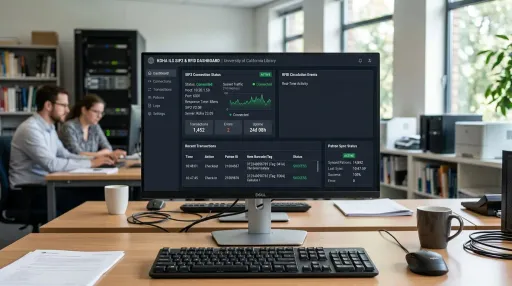

Hardware is only as effective as the software interpreting its stream. Our custom middleware acts as the filtering buffer between raw reader LLRP sockets and business applications (SAP S/4HANA, Tally Prime, Zoho Books, Koha ILS), preventing ghost reads and syncing verified transactions in real time.

Frequently Asked Questions

What frequency band do RFID hardware products use in India?

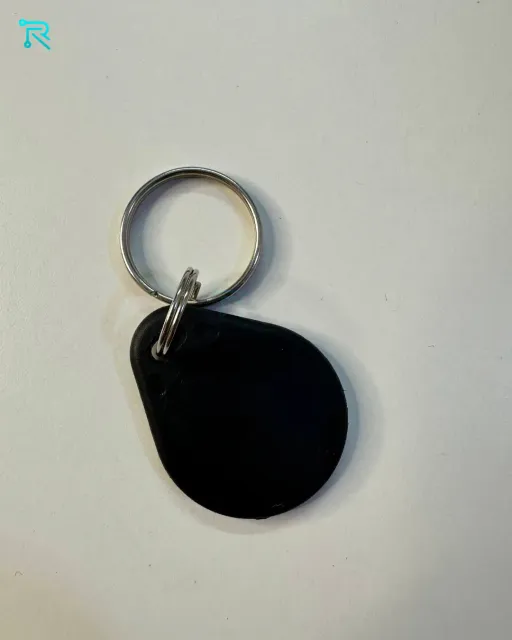

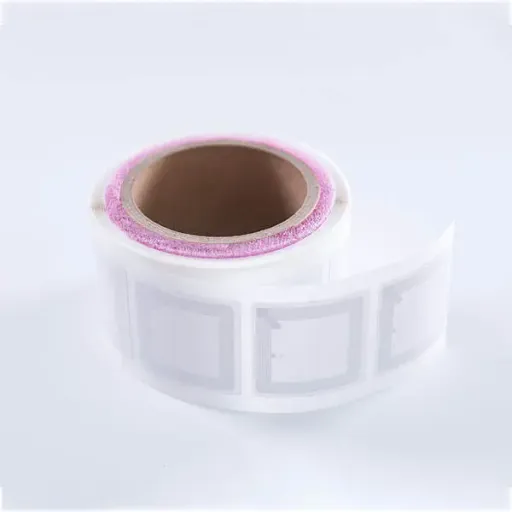

All passive UHF RFID hardware products in India operate in the licensed-free 865–867 MHz frequency band governed by WPC GSR 564(E) regulations. High Frequency (HF) and NFC products operate at 13.56 MHz.
How do I choose between Fixed Readers and Handheld Scanners?

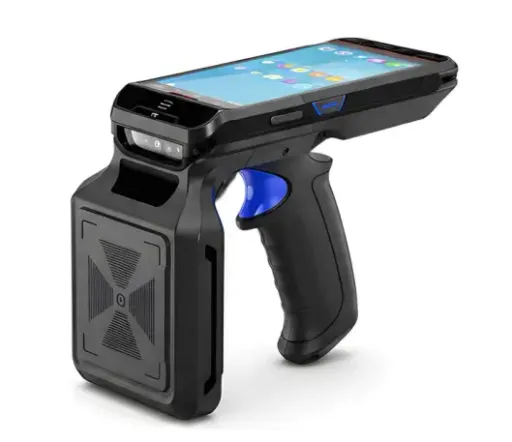

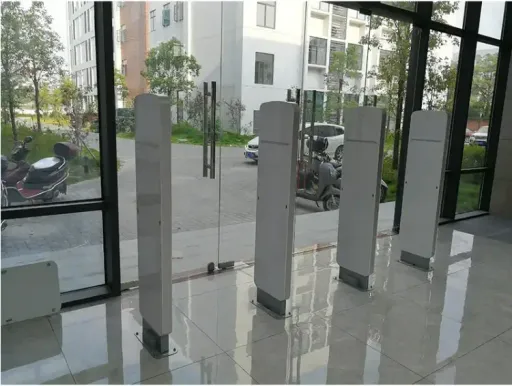

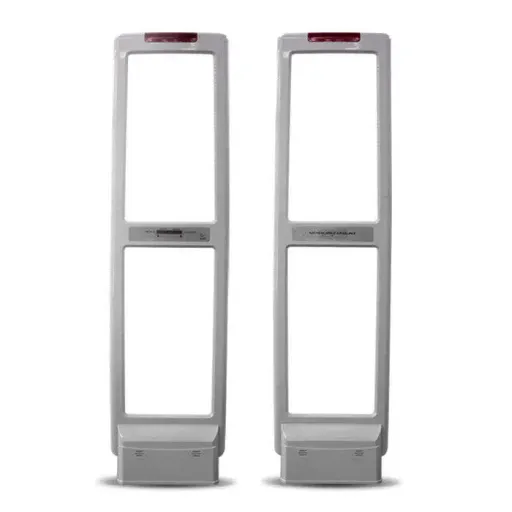

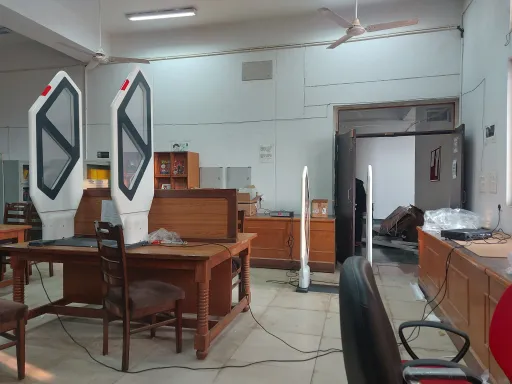

Fixed RFID readers are best for automated dock doors, conveyor belts, and security gates where items pass without manual intervention. Handheld RFID scanners are ideal for flexible warehouse cycle counts, inventory searches, and on-demand retail audits.
Can these RFID products integrate with our existing ERP?
Yes. Our products interface through custom middleware supporting SAP S/4HANA, Tally Prime, Zoho Books, Koha ILS, and custom SQL databases via REST APIs, MQTT, and WebSockets.
What type of RFID tag is required for metallic items or liquid containers?

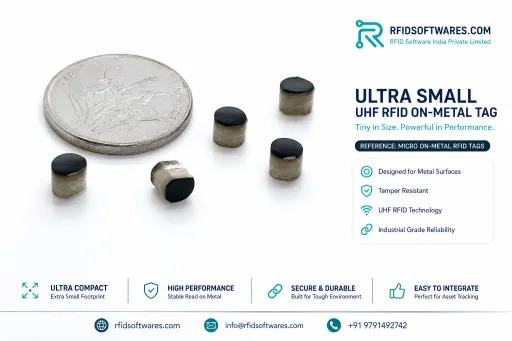

Metallic items require on-metal PCB or encapsulated ABS tags with built-in dielectric spacers. For liquid containers, flag tags or specialized high-memory UHF tags tuned for high dielectric environments are required.
