Handheld RFID Scanners

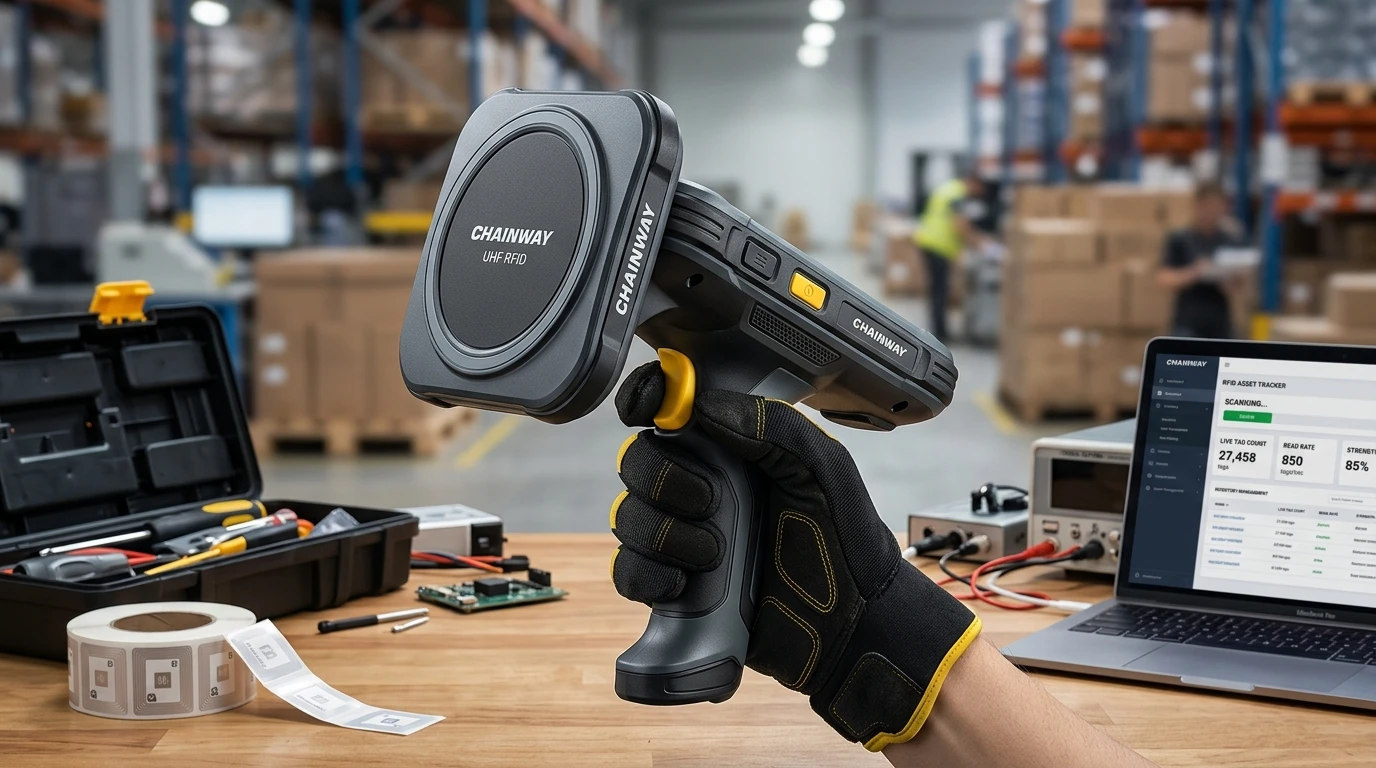

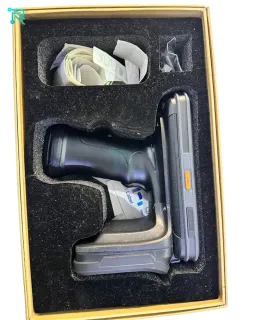

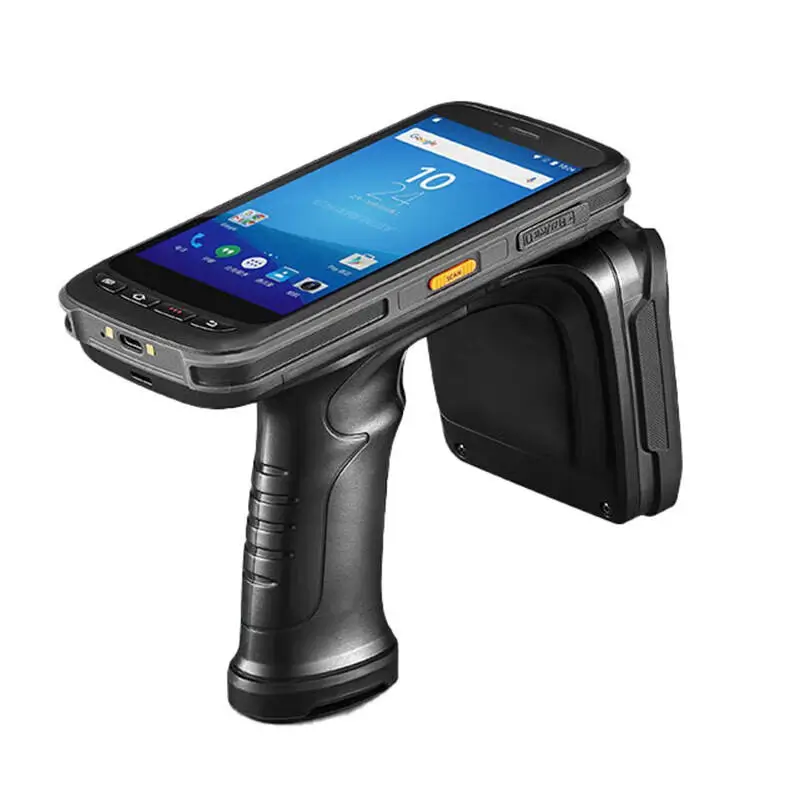

Chainway C72 UHF RFID Handheld Reader India
Industrial-Grade UHF RFID Handheld Scanner with Impinj E710 Chip for Warehouses, Retail & Asset Tracking
₹70,000
★ 4.6
Wholesale & custom volume pricing available. Get an instant quote below.
Enterprise Assurances
1-Year OEM Warranty
Tag Testing Lab
Pan-India Dispatch
SDK / API Support
Description
The Chainway C72 UHF RFID Handheld Reader India | AUTOID (Model: PRD_1773852620259) is an ultra-rugged, long-range Android mobile computer engineered for heavy-duty industrial inventory, warehouse pallet tracking, railway rolling stock inspection, and asset management across India. Equipped with an integrated 4 dBi circular polarized UHF antenna and the high-performance Impinj E710 / R2000 silicon chipset, the C72 achieves an astonishing read distance of up to 30.0 meters in open outdoor environments and reads up to 700 tags per second.
1. Industrial-Grade Ruggedness & Octa-Core Android Power
Powered by a fast Octa-Core 2.0 GHz processor running Android 11 / 13 with 3GB/4GB RAM and 32GB/64GB Flash storage, the C72 features a bright 5.2-inch Full HD (1920x1080) outdoor-readable IPS display. Encapsulated in an IP65 dust/water-sealed housing with a 1.8-meter drop rating, it operates in extreme warehouse temperatures from -20°C to +50°C.
2. Massive 8000 mAh Dual-Battery System & Zebra Barcode Imager
The reader is equipped with an ergonomic pistol grip housing a massive 8,000 mAh rechargeable lithium-ion battery pack, supporting continuous 14+ hour multi-shift operations. It includes a built-in Zebra SE4710 / SE4750 2D barcode imager, 4G LTE dual-SIM cellular, Dual-Band Wi-Fi (802.11ac), GPS/GLONASS, and Bluetooth 5.0, compliant with Indian WPC 865–867 MHz regulations.
Specifications
- Model Number
- Chainway C72 UHF (AUTOID C72-UHF-E710)
- Operating System
- Android 11.0 / Android 13.0 (GMS Certified)
- Processor
- Cortex-A53 Octa-Core 2.0 GHz / 2.3 GHz
- Memory & Storage
- 3GB RAM + 32GB ROM (Optional: 4GB + 64GB), MicroSD up to 128GB
- RFID Engine
- Impinj E710 / R2000 RAIN RFID Module
- RFID Frequency
- 865–867 MHz (Indian WPC Certified) / 865–868 MHz ETSI / 902–928 MHz FCC
- Antenna
- Integrated 4 dBi Circular Polarized Antenna
- Reading Distance
- Up to 30.0 meters (Outdoor / Open Air) | 10–20m (Indoor Pallets)
- Scan Throughput
- 700+ Tags / Second
- Display
- 5.2-Inch IPS Full HD (1920 × 1080) Corning Gorilla Glass Glove-Touch Screen
- Battery
- 8,000 mAh Main Li-Ion Rechargeable Battery (Pistol Grip Encapsulated)
- Barcode Engine
- Zebra SE4710 / SE4750 2D Imager (Optional)
- Drop Specification
- IP65 Sealing, 1.8m (6.0 ft) Drop Spec to Concrete across Operating Temp
- Connectivity
- 4G LTE (Dual Nano-SIM), Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, GPS/GLONASS
Verified Reviews
4.6 out of 5
Based on 5 verified client reviews.
Genuine Enterprise Feedback
Verified Project Deployments
Rajesh Chhabra, Director at Waytm (waytm.in)
Verified Project
"Long battery life easily lasts an entire 8-hour shift of intensive inventory cycle counting."
Gaurav Singh, Director at Gen Agri Parts (genagriparts.com)
Verified Project
"Rugged drop-resistant casing. We have dropped it multiple times on concrete floors without any issues."
Rohan Mehta, Logistics Lead at ExpressCargo India
Verified Project
"The built-in Impinj R2000 module provides exceptional sensitivity for reading dense tag stacks."
Munish Arnot, Arihant Traders (arihanttraderss.com)
Verified Project
"Comes pre-loaded with OpenRFID mobile software, making deployment plug-and-play."
Questions
What is the maximum read distance of the Chainway C72 UHF reader in India?
Equipped with the high-performance Impinj E710/R2000 chip and a 4 dBi circular polarized antenna, the C72 achieves an impressive read distance of up to 30.0 meters in open field environments and 10 to 20 meters inside warehouse racking.
How long does the 8,000 mAh battery last during heavy warehouse stocktaking?
The 8,000 mAh high-capacity battery provides 12 to 14 hours of continuous high-power RFID scanning, easily supporting full 2-shift operations without requiring mid-day recharging.
Is the Chainway C72 certified for legal operation in India?
Yes. The Chainway C72 is fully certified by the Indian Wireless Planning & Coordination (WPC) wing for operation within the deregulated 865.0 MHz to 867.0 MHz UHF frequency band (GSR 564(E)).
What is the HSN Code and GST rate for Chainway handheld readers in India?
Handheld RFID terminals are classified under HSN Code 84719000 with an 18% GST rate. RFID Softwares provides full GST invoices, 1-year warranty, and comprehensive SDK integration support.
Does the C72 also scan standard 1D and 2D barcodes?
Yes. The C72 includes an integrated industrial Zebra 2D barcode imager capable of reading standard UPC/EAN barcodes, QR codes, and DataMatrix codes even if scratched or poorly printed.
Unit Price
₹70,000
