Anti-Metal RFID Tags

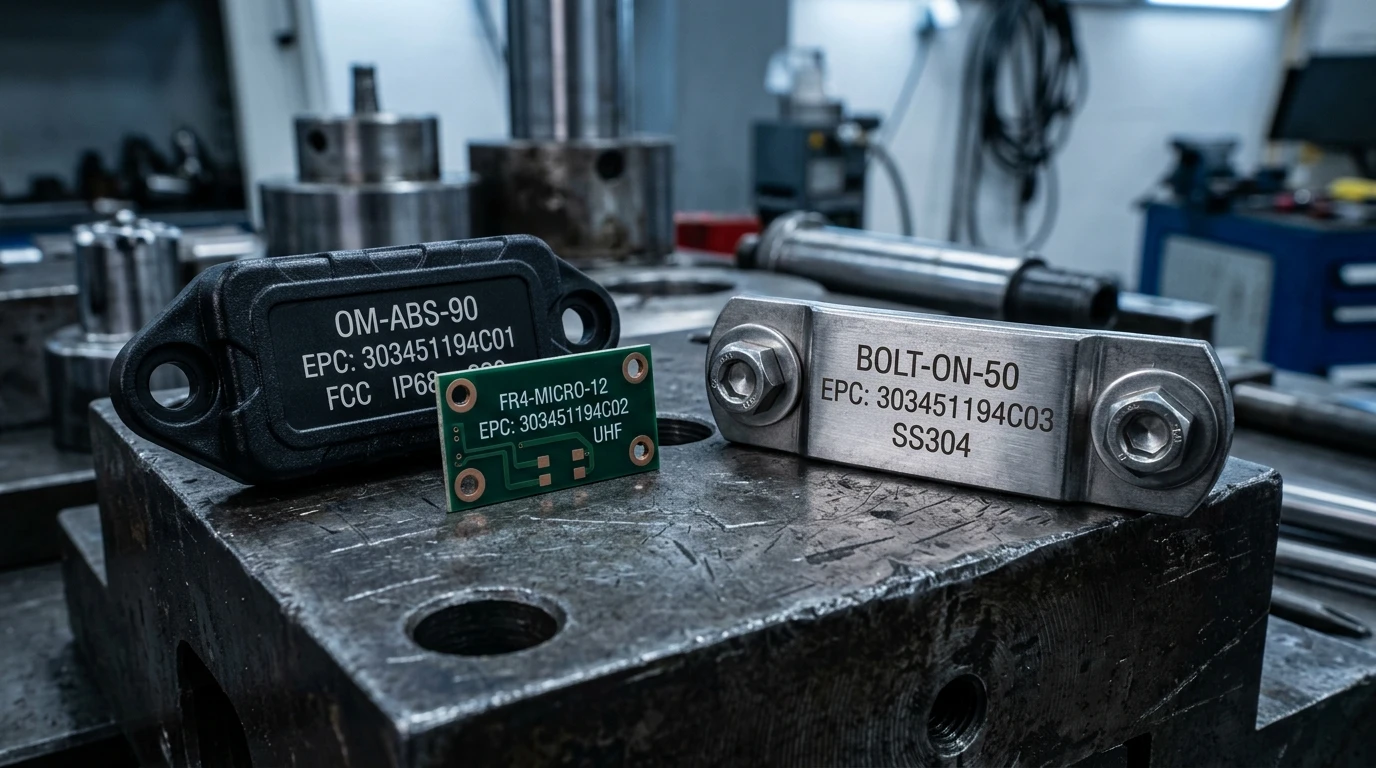

UHF Anti Metal Tags for Industrial Asset Tracking Systems
On-Metal Hard Tags for IT Assets, Toolrooms & Industrial Equipment
₹40
★ 4.8
Wholesale & custom volume pricing available. Get an instant quote below.
Enterprise Assurances
Anti-Metal Isolation Layer
IP68 Weather & Chemical Proof
Pan-India Dispatch
Tested up to 10M+ on Steel
Tagging Metal Machinery, IT Servers, or Pipes?
Standard RFID tags fail on conductive metal surfaces. Our on-metal tags feature engineered ferrite absorption shielding for heavy machinery, tool cribs, and IT racks.
Description
The UHF Anti Metal Tags for Industrial Asset Tracking Systems (Model: PRD_HW_ANTI_METAL) are ruggedized, heavy-duty on-metal RFID tags engineered for harsh industrial manufacturing plants, oil and gas refineries, construction machinery, outdoor electrical assets, and returnable transport items (RTI). Encapsulated in a heavy-duty IP68 waterproof and impact-resistant ABS/FR4 composite housing, this tag incorporates an internal engineered microstrip dielectric spacer that allows it to achieve an exceptional read range of up to 6.0 to 10.0 meters directly on steel, aluminum, and cast-iron surfaces.
1. Robust Industrial RF Architecture & Extreme Temperature Resistance
Powered by the high-performance Alien Higgs-9 / Impinj Monza R6-P silicon IC, the tag operates across 860 MHz to 960 MHz (fully tuned for Indian WPC 865–867 MHz). The internal resonant cavity converts the metal asset itself into an extended ground plane, enhancing rather than degrading RF signal propagation. Engineered to endure extreme industrial environments, it withstands thermal shocks from -40°C to +100°C, chemical exposure, high-pressure water washdowns, and continuous heavy mechanical vibration.
2. Multi-Option Industrial Mounting
The tag housing features two reinforced M4 screw/rivet mounting holes alongside an optional ultra-strong industrial 3M VHB foam adhesive backing, providing flexible, permanent installation on steel shipping containers, automotive production line skids, gas cylinders, electrical transformers, and high-value metallic tools. Fully compliant with EPCglobal Gen2v2 and ISO/IEC 18000-63, it integrates 128-bit EPC memory and 96-bit factory TID.
Specifications
- Model Number
- PRD-IND-ONM-ABS
- Chipset IC
- Impinj Monza R6-P / Alien Higgs-9 (Industrial Grade)
- Operating Frequency
- 860 MHz to 960 MHz (Global RAIN UHF / WPC 865–867 MHz)
- Protocol Standard
- EPCglobal Gen2v2 / ISO/IEC 18000-63
- Ingress Protection
- IP68 (Dust-Tight & Continuous Water Immersion)
- Read Sensitivity
- -22.1 dBm (Industrial Cavity Architecture)
- EPC Memory
- Up to 128 Bits Auto-Serialized
- TID Memory
- 96 Bits (48-Bit Unique Serial Number Factory-Locked)
- Dimensions
- 135.0 mm × 22.0 mm × 12.0 mm (Heavy-Duty ABS Housing)
- Mounting Methods
- Dual M4 Screw Holes (Center Distance 120mm) or 3M VHB Adhesive
- Operating Temperature
- -40°C to +100°C (-40°F to +212°F)
- Reading Distance On Metal
- 6.0m to 10.0m (Fixed Portal Antennas & Handheld Scanners)
- Housing Material
- High-Impact UV-Stabilized Industrial ABS / Polycarbonate
- Packaging Format
- Bulk Box Packaging (100 Pcs / Carton)
Verified Reviews
4.8out of 5
Based on 4 verified client reviews.
Genuine Enterprise Feedback
Verified Project Deployments
Deepak Sharma, Co-Founder at My IT Solutions (admis.co)
Verified Project
"Very rugged outer shell. Resists high temperatures, pressure, and chemical exposure in industrial sites."
Rajesh Chhabra, Director at Waytm (waytm.in)
Verified Project
"Durable mounting options via screws or heavy-duty tape. Ideal for high-value metallic asset tracking."
Vikramaditya Roy, Plant Manager at Apex Industrial
Verified Project
"Exceptional read distance on metal surfaces up to 6 meters."
Questions
How does an industrial anti-metal RFID tag work when attached to heavy steel?
Standard RFID tags fail on metal because metal shorts the electromagnetic field. This industrial anti-metal tag uses an engineered microstrip dielectric cavity that decouples the antenna from the metal and utilizes the metallic surface as an expansive ground plane, achieving powerful 6–10 meter read ranges.
Can this tag withstand outdoor rain, chemical exposure, and pressure washdowns?
Yes. Encapsulated in high-impact UV-stabilized ABS with an IP68 waterproof rating, it resists continuous outdoor weathering, UV radiation, industrial degreasers, motor oils, and high-pressure hot water washdowns.
What mounting options are available for installing on metal equipment?
The tag features two recessed M4 screw/rivet holes for mechanical bolting onto steel frames, machine chassis, or shipping containers, as well as an optional 3M VHB high-bond foam adhesive for non-drilling installations.
What is the HSN Code and GST rate for industrial RFID tags in India?
Industrial RFID tags are classified under HSN Code 8523 with an 18% GST rate. RFID Softwares provides B2B GST tax invoices with full input tax credit (ITC) for manufacturing and EPC clients.
Can you supply these tags with pre-programmed EPC data and laser-engraved asset numbers?
Yes. We offer factory laser engraving of sequential asset barcodes, company logos, and custom EPC memory pre-encoding on bulk orders.
