Description

The AM RFID Gate System for Office Access and Asset Security (Model: PRD_1774714693560) is an intelligent physical security and loss-prevention portal system engineered for corporate headquarters, IT technology parks, R&D data centers, government institutions, and legal firms. Combining 58 kHz Acoustic Magnetic (AM) EAS anti-theft surveillance with 13.56 MHz High-Frequency (HF) / UHF RFID personnel access control, this turnkey system provides seamless employee turnstile badge verification while preventing unauthorized removal of IT laptops, confidential files, and corporate assets.

1. Dual-Frequency Pedestal Architecture & Anti-Interference Physics

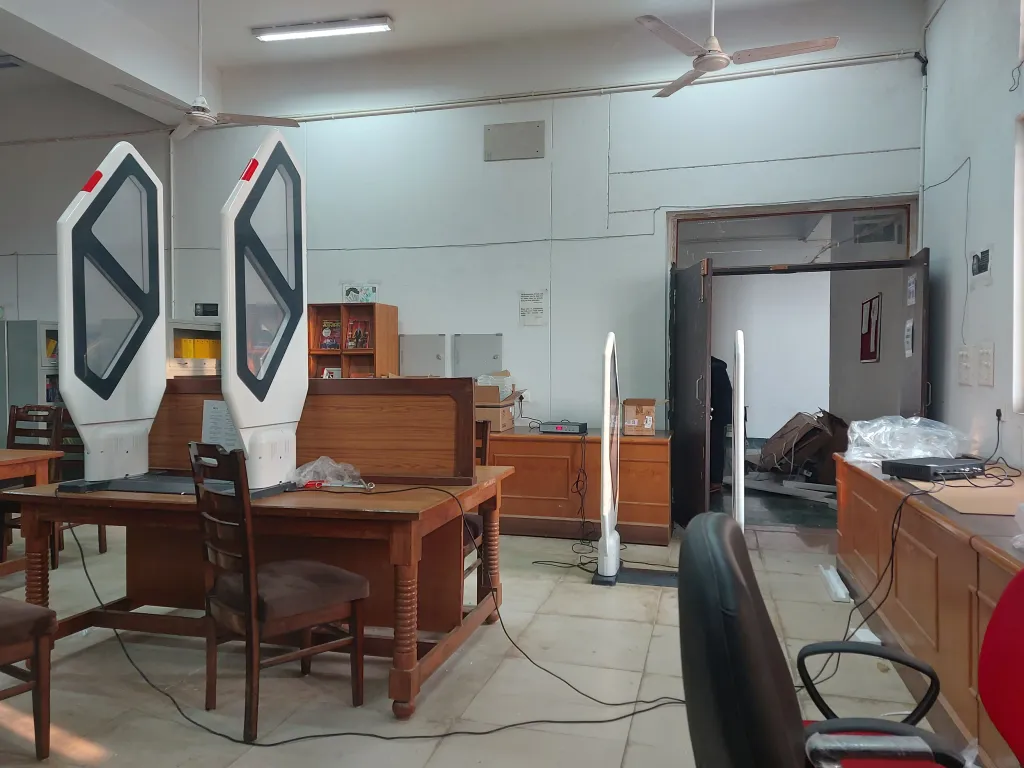

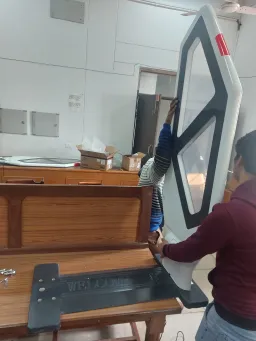

The system features slim, architecturally elegant acrylic pedestal gates equipped with high-sensitivity 58 kHz AM resonators and integrated multi-antenna RFID arrays. Operating with advanced digital signal processing (DSP), the gates provide a wide detection aisle width of 1.5 to 2.4 meters between pedestals with 99%+ detection accuracy and virtually zero false alarms caused by electrical noise, cellular phones, or metal building structures.

2. Automated Video Surveillance & Access Log Analytics

When an unauthorized tagged laptop or confidential document passes through the exit portal, the system triggers loud acoustic sirens, flashing multi-color LED visual beacons, and instantly signals the CCTV surveillance NVR to bookmark video footage while sending automated push notifications to security managers. The integrated access control controller communicates via Wiegand, OSDP, TCP/IP, and REST APIs to corporate HR and security databases.

Specifications

Model Number: PRD-AM-GATE-SEC
Surveillance Technologies: 58 kHz Acoustic Magnetic (AM) EAS + 13.56 MHz / 865 MHz RFID
Pedestal Dimensions: 1550 mm (H) × 420 mm (W) × 120 mm (D) (Per Pedestal)
Pedestal Material: Architectural Grade High-Transparency Acrylic / Brushed Stainless Steel
Detection Aisle Width: 1.5 meters to 2.4 meters (Configurable with Dual/Tri-Pedestal Layouts)
False Alarm Rate: < 0.1% with Dynamic DSP Digital Noise Cancellation
Controller Interfaces: TCP/IP Ethernet, Wiegand 26/34, RS485 (OSDP v2), Relay Output, USB

RS232 / RS485 Serial
Wiegand & OSDP
Alarm Indicators: Multi-Color RGB LED Edge Lighting + 95 dB Piezo Acoustic Siren
CCTV / VMS Integration: ONVIF Profile S Compatible, Dry Contact Relay Output, HTTP Webhook
Operating Voltage: 110V – 240V AC, 50/60 Hz (Power Consumption < 60W per Pair)
Operating Temperature: 0°C to +50°C (32°F to +122°F)
Software Suite: Enterprise Gate Controller Manager v3.5 (Cloud / On-Premise)

Developer Integration Kit • OpenRFID Ready

Hardware SDK & Edge API Quickstart

Connect, configure RF power (10–33 dBm), and stream tag inventory to your ERP / backend in under 5 minutes.

Protocol

LLRP / RS-232 / REST

Read Rate

Up to 750 tags/sec

💡

Why this matters to your business: You are not locked into proprietary software. Our open integration drivers allow your internal IT team or ERP vendor (SAP, Tally, Zoho, Oracle) to directly ingest live RFID scans without expensive recurring middleware licensing fees.

RfidReaderIntegration.cs

API Ready

using OpenRFID.Core.Drivers;
using OpenRFID.Core.Models;

// 1. Initialize TCP/LLRP Connection
using var cts = new CancellationTokenSource(TimeSpan.FromSeconds(30));
var reader = new OpenRfidClient(ip: "192.168.1.116", port: 5084);

await reader.ConnectAsync(cts.Token);
await reader.SetPowerAsync(antennaId: 1, txPowerDbm: 30.0); // India WPC 865-867 MHz

// 2. Stream Real-time RFID Inventory Events with Lock-Free Channel
await foreach (var tag in reader.StreamTagsAsync(cts.Token))
{
    Console.WriteLine("[LIVE READ] EPC: " + tag.EpcHex + " | RSSI: " + tag.RssiDbm + " dBm");

    // Dispatches directly to SAP / Tally / SQL Database queue
    await erpBridge.PushBatchAsync(tag);
}

import asyncio
import json

# Async Socket Streaming Client
async def stream_rfid_inventory(host="192.168.1.116", port=5084):
    reader, writer = await asyncio.open_connection(host, port)
    print("Connected to RFID Reader at " + host + ":" + str(port))

    try:
        while True:
            line = await reader.readline()
            if not line: break
            tag = json.loads(line.decode('utf-8'))
            print("[TAG DETECTED] EPC=" + str(tag['epc']) + ", RSSI=" + str(tag['rssi']))
    finally:
        writer.close()
        await writer.wait_closed()

asyncio.run(stream_rfid_inventory())

#include <iostream>
#include <vector>
#include <boost/asio.hpp>

// RS-232 Raw Frame (Header: 0xA0, Length: 0x04, ReaderId: 0x01, Realtime Inventory: 0x89)
const std::vector<uint8_t> INVENTORY_CMD = { 0xA0, 0x04, 0x01, 0x89, 0x01, 0xD1 };

void poll_reader(boost::asio::serial_port& port) {
    boost::asio::write(port, boost::asio::buffer(INVENTORY_CMD));
    std::vector<uint8_t> response(64);
    port.read_some(boost::asio::buffer(response));
    std::cout << "Received Raw EPC Bytes: " << response.size() << std::endl;
}

# Push real-time batch scan payload to OpenRFID Cloud Ingestion API
curl -X POST https://api.rfidsoftwares.com/v1/ingest/batch \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer YOUR_API_TOKEN" \
  -d '{
    "readerId": "am-based-rfid-gate-system",
    "warehouseId": "WH-MUMBAI-01",
    "timestamp": "2026-09-28T14:30:00Z",
    "tags": [
      { "epc": "E28011606000020478059012", "rssi": -48.5, "antenna": 1, "count": 14 },
      { "epc": "E28011606000020478059013", "rssi": -52.1, "antenna": 2, "count": 8 }
    ]
  }'

Supports SAP S/4HANA TallyPrime Ready Sub-10ms Latency WPC Certified (865–867 MHz)

Explore Middleware Catalog

Factory Automation & Modbus PLC Integration →

Industrial GPIO Pinout & Modbus TCP Register Map

Hardware wiring specifications for connecting AM RFID Gate System for Office Access Control and Security directly to optical photocell sensors, light stacks, and Siemens / Allen-Bradley PLCs.

4 Opto Inputs 4 Relay Outputs

💡

How Factory Automation Works (In Plain English):

Instead of keeping the RFID scanner running 24/7 (which overheats equipment and reads distant tags accidentally), a physical light beam sensor (photocell) tells the reader to scan only when a box arrives on the conveyor belt. If the box has a missing or wrong tag, the reader instantly trips a red light and signals a robotic arm or pneumatic pusher to divert the box.

10-Pin Screw Terminal Pinout 2.5 kV Galvanic Isolation

PIN 1: GPI-1 (+)

Photocell Sensor Trigger (5–24V DC)

PIN 2: GPI-1 (-)

Isolated Ground Reference

PIN 5: GPO-1 (NO)

Green Light Stack Relay (Max 30V/1A)

PIN 6: GPO-2 (NO)

Red Siren / Diverter Ejector Relay

PINS 9 & 10: AUX +24V DC / GND

Internal auxiliary power output for powering proximity sensors

Conveyor Trigger Logic Workflow

1 Optical Beam Cut: Carton cuts photocell beam → GPI-1 transitions from 0V to +24V HIGH.
2 1,500ms Active Scan: Reader powers RF antenna array (30 dBm) and captures all tag EPCs inside the carton.
3 ERP Validation: If carton count matches ERP manifest, GPO-1 pulses for 200ms (Green Light / Belt Continues).
4 Defect Ejection: If tag count is incomplete, GPO-2 triggers pneumatic diverter to route carton to audit lane.

⚡ Cycle Execution Time: < 45 milliseconds

PLC Modbus TCP Register Memory Mapping (Siemens S7-1200 / Rockwell CompactLogix)

Register Address	Data Type	Access	Description & PLC Interpretation
40001	UINT16	Read-Only	Reader Status: 0=Idle, 1=Scanning Active, 2=Fault/Overheat
40002	UINT16	Read-Only	Total Unique Tags Captured in Current Trigger Cycle
40003–40008	6 x UINT16	Read-Only	96-bit Hex EPC Data of Primary Verified Tag
40009	INT16	Read-Only	Peak Signal RSSI (e.g. -48 dBm) for RF coverage tuning
40101	UINT16	Read/Write	PLC Software Trigger Override: Write 1 to start inventory cycle

Friis Transmission Physics & WPC 865–867 MHz

UHF RFID Read Range & Link Budget Estimator

1. Reader Conducted RF Power (dBm)

10 dBm (Handheld Low)27 dBm (Handheld High)30 dBm (Standard Fixed)33 dBm (Max Port)

2. Antenna Gain (dBi)

Polarization Type

3. Coaxial Cable Type

Cable Length5m (0.64 dB Loss)

4. Tag IC Transponder Chip Sensitivity

5. Operating Environment

Calculated Range & Link Metrics

Recommended Working Distance (Warehouse Reliability 99.5%):

8.5m(28.0 Feet)

Safe operational limit with multipath mitigation & antenna detuning buffer.

Theoretical Free-Space Maximum:

12.2m(40.0 Feet)

Maximum line-of-sight range in ideal non-metallic open air.

Total Radiated EIRP:38.4 dBm (6.85 W)

WPC Legal Ceiling (India):36.0 dBm (4.0 W EIRP)

Coaxial Cable Attenuation:-0.64 dB

Forward Link Margin:+60.9 dB

ℹ️All fixed readers deployed by RFID Softwares hold certified WPC Equipment Type Approval (ETA) for 865–867 MHz operation.

Live Demonstration

Watch AM RFID Gate System for Office Access Control and Security in Action

Browse All Video Blueprints →

Video 1 of 1

AM RFID Gate System for Office Access Control and Security - Live Demonstration

Real field testing and operational validation demonstration conducted at our lab & partner facilities.

Full Blueprint & Transcript ↗

Field Proven & Certified

Verified Field Deployments & Technical Standards

Real customer results, companion bench video demonstrations, and official engineering setup documentation for AM RFID Gate System for Office Access Control and Security.

Real-World Customer Deployments (1)

99% Shoplifting Shrinkage Cut Read Case Study →

Laxmi Handloom Agra Garment Showroom Anti-Theft Rollout

Dual 58 kHz AM pedestal gates protecting high-value silk sarees and ethnic wear from unauthorized exit.

Live Video Demonstration

▶ Watch Gate Calibration

AM Anti-Theft Security Gate Alarm Testing & Calibration

Acoustic magnetic gate detection volume mapping, chime volume calibration, and false-alarm rejection test.

Verified Reviews

4.7out of 5

Based on 3 verified client reviews.

Genuine Enterprise Feedback

Verified Project Deployments

Shikha Kaur Sodhi, Co-Founder at Arora Mobile World (aroramobileworld.com) Verified Project

"Dual detection system gives us total security at our store entrance. False alarms are zero."

Munish Arnot, Arihant Traders (arihanttraderss.com) Verified Project

"Aesthetic acrylic pillar design looks sleek at our main showroom entry."

Manoj Verma, Founder at Rallytech Print Services Verified Project

"Built-in people counter helps us measure footfalls alongside anti-theft protection."

Engineering & Planning Hub

Interactive RFID Engineering Tools & Calculators

Use our free interactive calculators and simulators to model RF physics, calculate link budgets, estimate ROI, and configure EPC tags.

View All 23 Developer Tools →

RF Physics Launch Tool →

RFID Link Budget Calculator

Calculate reader EIRP (+36 dBm WPC), antenna gain (dBi), path loss, and receiver sensitivity threshold (-86 dBm).

Open Interactive Calculator →

Portal Design Launch Tool →

Antenna Coverage & Beamwidth Calculator

Model 3dB azimuth/elevation beam footprints and coverage radii for warehouse dock doors and conveyor gates.

Open Interactive Calculator →

Throughput Launch Tool →

RFID Portal Velocity Calculator

Estimate tag dwell times, maximum conveyor transit speeds (m/s), and read rates under dense tag environments.

Open Interactive Calculator →

Questions

How does the gate system prevent employee theft of company laptops and IT assets?

Company laptops, hard drives, and sensitive document binders are tagged with discreet AM security labels or on-metal tags. If an asset is taken through the exit gate without authorization, the system sounds an immediate alarm, illuminates red strobe lights, and captures CCTV snapshots.

What is the maximum aisle width between the two gate pedestals?

Thanks to advanced DSP signal processing, the acrylic pedestals provide an expansive detection aisle width of up to 2.4 meters, allowing comfortable, wheelchair-accessible, and high-volume employee foot traffic.

Can this gate integrate with existing corporate turnstiles and access control systems?

Yes. The master controller supports standard Wiegand 26/34 and OSDP protocols, allowing it to interface directly with existing biometric turnstiles, HID door controllers, and building management systems.

What is the HSN Code and GST taxation for gate security systems in India?

Security gate hardware is classified under HSN Code 8543 with an 18% GST rate. RFID Softwares provides complete supply, on-site installation, and testing with full GST invoices.

Does the system require specialized cabling between pedestals?

The system utilizes standard shielded Cat6 Ethernet cabling and low-voltage power interconnects, which can be routed through an under-floor cable raceway or overhead ceiling conduits.

Unit Price

₹1,20,000

WhatsApp Request Hardware Specs

RFID SOFTWARES

Enterprise RFID Hardware & Cloud Middleware Solutions

www.rfidsoftwares.com • info@rfidsoftwares.com • +91 9791492742

OFFICIAL TECHNICAL DATASHEET

Model / SKU: PRD_1774714693560

HSN Code: 85437099

Issued: 18 Oct 2026

RFID Manufacturing

AM RFID Gate System for Office Access Control and Security

Advanced Acousto Magnetic Technology

Commercial & Procurement Summary

Catalog Price:	₹1,20,000 (+ 18% GST: ₹1,41,600)
Category / SubCategory:	EAS Security Systems
Procurement & Lead Time:	Ready Stock • Dispatched within 2–4 Business Days Across India
Warranty & Testing:	1-Year Comprehensive Warranty • 100% Pre-Shipment Tested & Calibrated

Executive Product Overview

Secure entryways with our AM based RFID gate system. Seamless RFID access control for office, retail, and library buildings. Contact for details.

Technical Specifications & Operational Parameters

Engineering Parameter	Technical Specification / Capability
Model Number	PRD-AM-GATE-SEC
Surveillance Technologies	58 kHz Acoustic Magnetic (AM) EAS + 13.56 MHz / 865 MHz RFID
Pedestal Dimensions	1550 mm (H) × 420 mm (W) × 120 mm (D) (Per Pedestal)
Pedestal Material	Architectural Grade High-Transparency Acrylic / Brushed Stainless Steel
Detection Aisle Width	1.5 meters to 2.4 meters (Configurable with Dual/Tri-Pedestal Layouts)
False Alarm Rate	< 0.1% with Dynamic DSP Digital Noise Cancellation
Controller Interfaces	TCP/IP Ethernet, Wiegand 26/34, RS485 (OSDP v2), Relay Output, USB
Alarm Indicators	Multi-Color RGB LED Edge Lighting + 95 dB Piezo Acoustic Siren
CCTV / VMS Integration	ONVIF Profile S Compatible, Dry Contact Relay Output, HTTP Webhook
Operating Voltage	110V – 240V AC, 50/60 Hz (Power Consumption < 60W per Pair)
Operating Temperature	0°C to +50°C (32°F to +122°F)
Software Suite	Enterprise Gate Controller Manager v3.5 (Cloud / On-Premise)

Explore more

Related solutions, hardware specifications, and integration guides.

solution

RFID Retail Inventory Solution: Fast Stock Audits & POS Sync

Apparel stocktaking, shrinkage reduction, and POS checkout.

View →

product

Soft DR AM Label Tags (58kHz Anti-Theft)

Acousto-magnetic EAS anti-theft tags for retail security.

View →

post

RFID vs Barcode Systems Comparison

Speed benchmarks and theft prevention metrics.

View →
