Industrial IoT Gateways

Impinj Speedway R700 / R420 IoT Gateway Middleware

Name: RFID Softwares
Address: Gate No 1, Plot No 217, Gali No. 7, near AMRAPALI SAPPHIRE, Sadarpur Colony, Village Chhalera & Sadarpur, Sadarpur, Sector-45, Noida, Uttar Pradesh 201301, Noida, Uttar Pradesh, 201301, IN
Telephone: +91 9791492742

High-Speed Conveyor & Portal Scanning with Directional Vector Calculation

✨Simple Explanation with AI

Commercial Licensing Model

100% Full Source Code Ownership & Perpetual License

Zero SaaS Subscriptions

₹1,50,000One-Time Buyout (Perpetual License)

Royalty-Free

This middleware connector operates on-premise inside your internal corporate LAN, edge industrial PCs, and factory networks behind strict corporate firewalls. It is not sold as a multi-tenant cloud subscription.

Included Source Code & Deliverables:

✓Complete uncompiled source code (C# .NET 8 / C++ / Node.js Git repository)

✓Native ERP connectors (SAP RFC BAPI / Tally XML Port 9000 / LLRP sockets)

✓SQLite WAL local offline buffer engine (0% lost inventory during network drops)

✓100% royalty-free perpetual license with unmetered readers & dock doors

✓90 days direct developer integration walkthrough & engineering support

Request Source Code License & NDA 🧪 Test in Virtual Simulator

Request Hardware Specs & Volume Pricing Instant Quote on WhatsApp

Developer & ERP Integration Kit Portal Gate Sync

Low-latency Gen2 portal gateway reader filtering & REST webhooks.

Impinj Speedway LLRP Middleware

Enterprise Assurances

1-Year OEM Warranty

LLRP & REST API Ready

Pan-India Dispatch

Multi-Port Power Tested

Need Edge Reader Middleware or ERP Sync?

Eliminate tag flooding. We engineer edge middleware daemons that filter tag reads locally and post automated Goods Receipt & Dispatch vouchers into SAP or Tally Prime.

Book Middleware Call SAP Integration Blueprint

Description

Specifications

Impinj Models: Impinj Speedway R700, R420, R220, xArray overhead ceiling gateway
Streaming Protocols: MQTT 3.1.1/5.0, Apache Kafka, WebSockets, gRPC, REST Webhooks

MQTT & Sparkplug B
Conveyor Speed: Reliable tag capture at belt velocities up to 3.0 m/s (600 ft/min)
Directional Algorithm: Phase angle & RSSI vector analysis determining transit orientation
Edge Compute: Runs on on-reader Capless architecture or external edge microserver

Developer Integration Kit • OpenRFID Ready

Hardware SDK & Edge API Quickstart

Connect, configure RF power (10–33 dBm), and stream tag inventory to your ERP / backend in under 5 minutes.

Protocol

LLRP / RS-232 / REST

Read Rate

Up to 750 tags/sec

💡

Why this matters to your business: You are not locked into proprietary software. Our open integration drivers allow your internal IT team or ERP vendor (SAP, Tally, Zoho, Oracle) to directly ingest live RFID scans without expensive recurring middleware licensing fees.

RfidReaderIntegration.cs

API Ready

using OpenRFID.Core.Drivers;
using OpenRFID.Core.Models;

// 1. Initialize TCP/LLRP Connection
using var cts = new CancellationTokenSource(TimeSpan.FromSeconds(30));
var reader = new OpenRfidClient(ip: "192.168.1.116", port: 5084);

await reader.ConnectAsync(cts.Token);
await reader.SetPowerAsync(antennaId: 1, txPowerDbm: 30.0); // India WPC 865-867 MHz

// 2. Stream Real-time RFID Inventory Events with Lock-Free Channel
await foreach (var tag in reader.StreamTagsAsync(cts.Token))
{
    Console.WriteLine("[LIVE READ] EPC: " + tag.EpcHex + " | RSSI: " + tag.RssiDbm + " dBm");

    // Dispatches directly to SAP / Tally / SQL Database queue
    await erpBridge.PushBatchAsync(tag);
}

import asyncio
import json

# Async Socket Streaming Client
async def stream_rfid_inventory(host="192.168.1.116", port=5084):
    reader, writer = await asyncio.open_connection(host, port)
    print("Connected to RFID Reader at " + host + ":" + str(port))

    try:
        while True:
            line = await reader.readline()
            if not line: break
            tag = json.loads(line.decode('utf-8'))
            print("[TAG DETECTED] EPC=" + str(tag['epc']) + ", RSSI=" + str(tag['rssi']))
    finally:
        writer.close()
        await writer.wait_closed()

asyncio.run(stream_rfid_inventory())

#include <iostream>
#include <vector>
#include <boost/asio.hpp>

// RS-232 Raw Frame (Header: 0xA0, Length: 0x04, ReaderId: 0x01, Realtime Inventory: 0x89)
const std::vector<uint8_t> INVENTORY_CMD = { 0xA0, 0x04, 0x01, 0x89, 0x01, 0xD1 };

void poll_reader(boost::asio::serial_port& port) {
    boost::asio::write(port, boost::asio::buffer(INVENTORY_CMD));
    std::vector<uint8_t> response(64);
    port.read_some(boost::asio::buffer(response));
    std::cout << "Received Raw EPC Bytes: " << response.size() << std::endl;
}

# Push real-time batch scan payload to OpenRFID Cloud Ingestion API
curl -X POST https://api.rfidsoftwares.com/v1/ingest/batch \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer YOUR_API_TOKEN" \
  -d '{
    "readerId": "impinj-speedway-r700-portal-middleware",
    "warehouseId": "WH-MUMBAI-01",
    "timestamp": "2026-09-28T14:30:00Z",
    "tags": [
      { "epc": "E28011606000020478059012", "rssi": -48.5, "antenna": 1, "count": 14 },
      { "epc": "E28011606000020478059013", "rssi": -52.1, "antenna": 2, "count": 8 }
    ]
  }'

Supports SAP S/4HANA TallyPrime Ready Sub-10ms Latency WPC Certified (865–867 MHz)

Explore Middleware Catalog

Factory Automation & Modbus PLC Integration →

Industrial GPIO Pinout & Modbus TCP Register Map

Hardware wiring specifications for connecting Impinj Speedway R700 / R420 IoT Gateway Middleware | Octane SDK & MQTT directly to optical photocell sensors, light stacks, and Siemens / Allen-Bradley PLCs.

4 Opto Inputs 4 Relay Outputs

💡

How Factory Automation Works (In Plain English):

Instead of keeping the RFID scanner running 24/7 (which overheats equipment and reads distant tags accidentally), a physical light beam sensor (photocell) tells the reader to scan only when a box arrives on the conveyor belt. If the box has a missing or wrong tag, the reader instantly trips a red light and signals a robotic arm or pneumatic pusher to divert the box.

10-Pin Screw Terminal Pinout 2.5 kV Galvanic Isolation

PIN 1: GPI-1 (+)

Photocell Sensor Trigger (5–24V DC)

PIN 2: GPI-1 (-)

Isolated Ground Reference

PIN 5: GPO-1 (NO)

Green Light Stack Relay (Max 30V/1A)

PIN 6: GPO-2 (NO)

Red Siren / Diverter Ejector Relay

PINS 9 & 10: AUX +24V DC / GND

Internal auxiliary power output for powering proximity sensors

Conveyor Trigger Logic Workflow

1 Optical Beam Cut: Carton cuts photocell beam → GPI-1 transitions from 0V to +24V HIGH.
2 1,500ms Active Scan: Reader powers RF antenna array (30 dBm) and captures all tag EPCs inside the carton.
3 ERP Validation: If carton count matches ERP manifest, GPO-1 pulses for 200ms (Green Light / Belt Continues).
4 Defect Ejection: If tag count is incomplete, GPO-2 triggers pneumatic diverter to route carton to audit lane.

⚡ Cycle Execution Time: < 45 milliseconds

PLC Modbus TCP Register Memory Mapping (Siemens S7-1200 / Rockwell CompactLogix)

Register Address	Data Type	Access	Description & PLC Interpretation
40001	UINT16	Read-Only	Reader Status: 0=Idle, 1=Scanning Active, 2=Fault/Overheat
40002	UINT16	Read-Only	Total Unique Tags Captured in Current Trigger Cycle
40003–40008	6 x UINT16	Read-Only	96-bit Hex EPC Data of Primary Verified Tag
40009	INT16	Read-Only	Peak Signal RSSI (e.g. -48 dBm) for RF coverage tuning
40101	UINT16	Read/Write	PLC Software Trigger Override: Write 1 to start inventory cycle

Friis Transmission Physics & WPC 865–867 MHz

UHF RFID Read Range & Link Budget Estimator

1. Reader Conducted RF Power (dBm)

10 dBm (Handheld Low)27 dBm (Handheld High)30 dBm (Standard Fixed)33 dBm (Max Port)

2. Antenna Gain (dBi)

Polarization Type

3. Coaxial Cable Type

Cable Length5m (0.64 dB Loss)

4. Tag IC Transponder Chip Sensitivity

5. Operating Environment

Calculated Range & Link Metrics

Recommended Working Distance (Warehouse Reliability 99.5%):

8.5m(28.0 Feet)

Safe operational limit with multipath mitigation & antenna detuning buffer.

Theoretical Free-Space Maximum:

12.2m(40.0 Feet)

Maximum line-of-sight range in ideal non-metallic open air.

Total Radiated EIRP:38.4 dBm (6.85 W)

WPC Legal Ceiling (India):36.0 dBm (4.0 W EIRP)

Coaxial Cable Attenuation:-0.64 dB

Forward Link Margin:+60.9 dB

ℹ️All fixed readers deployed by RFID Softwares hold certified WPC Equipment Type Approval (ETA) for 865–867 MHz operation.

Live Demonstration

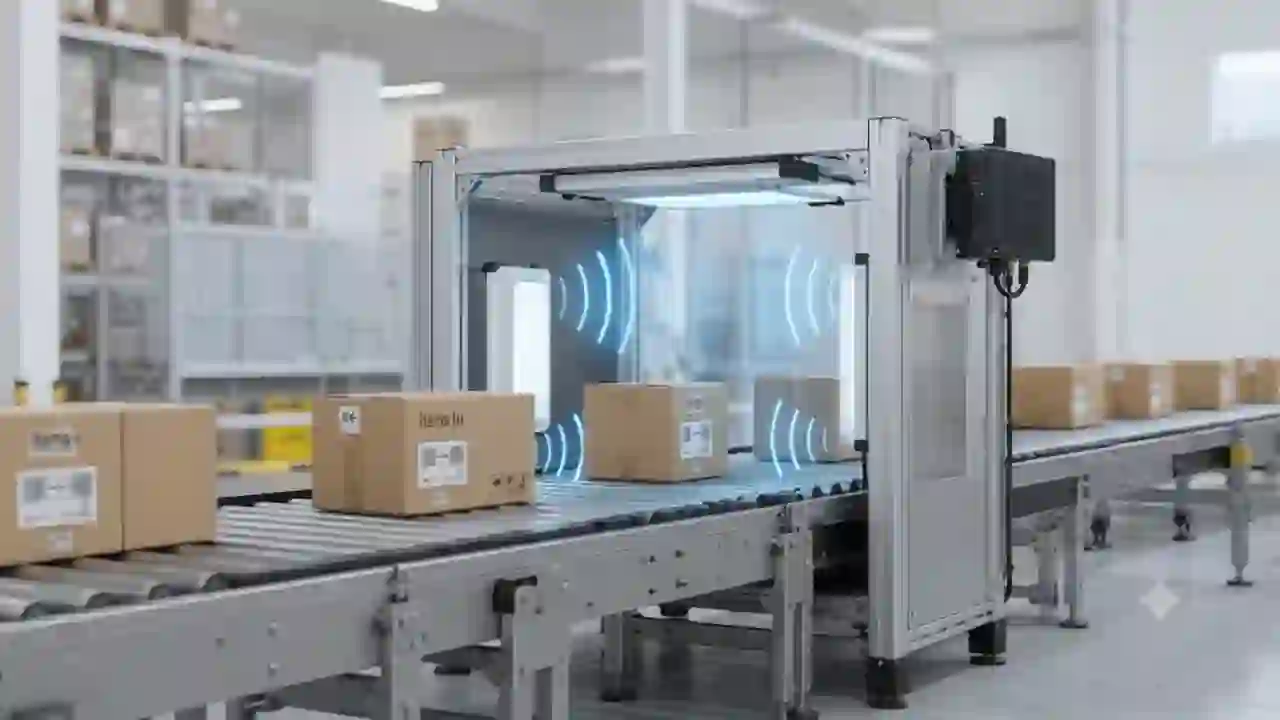

Watch Impinj Speedway R700 / R420 IoT Gateway Middleware | Octane SDK & MQTT in Action

Browse All Video Blueprints →

Real field testing and operational validation demonstration conducted at our lab & partner facilities. Demonstrates read distance, physical durability, and live interrogation.

Packaging & Accessories

What's in the Box & Hardware Blueprint

Every unit is factory-inspected, serialized, and paired with essential deployment accessories.

Fixed Industrial Portal / Conveyor Gateway

Industrial Fixed Reader Hub (4/8 Port)

1 Unit

IP53/IP65 aluminum chassis with PoE+ support

24V 3.0A Regulated Power Supply & Cord

1 Set

Universal AC input with surge protection

LMR-240 Double-Shielded RF Cables (3m)

4 Cables

Ultra-low attenuation SMA-Male to RP-TNC Male

Heavy-Duty Aluminum VESA Mounting Kit

1 Set

Vibration-damped bracket for portal masts

Opto-Isolated GPIO Terminal Block

1 Block

Plug for photocell beam sensors & light stack relays

OpenRFID Edge Daemon License (1-Year)

1 License

Native SAP RFC, Tally XML & LLRP bridge

💡

Need a 14-Day Physical On-Site Pilot Evaluation?

We offer paid 14-day on-site pilot trials with demo setup in Delhi-NCR (minimum ~₹50,000+ demo POC fee + refundable hardware deposit). Remote-assisted starter packs available across India.

Book Paid Pilot Trial

Engineering & Planning Hub

Interactive RFID Engineering Tools & Calculators

Use our free interactive calculators and simulators to model RF physics, calculate link budgets, estimate ROI, and configure EPC tags.

View All 23 Developer Tools →

RF Physics Launch Tool →

RFID Link Budget Calculator

Calculate reader EIRP (+36 dBm WPC), antenna gain (dBi), path loss, and receiver sensitivity threshold (-86 dBm).

Open Interactive Calculator →

Portal Design Launch Tool →

Antenna Coverage & Beamwidth Calculator

Model 3dB azimuth/elevation beam footprints and coverage radii for warehouse dock doors and conveyor gates.

Open Interactive Calculator →

Throughput Launch Tool →

RFID Portal Velocity Calculator

Estimate tag dwell times, maximum conveyor transit speeds (m/s), and read rates under dense tag environments.

Open Interactive Calculator →

Questions

How does the middleware determine if a forklift is entering or leaving the warehouse?

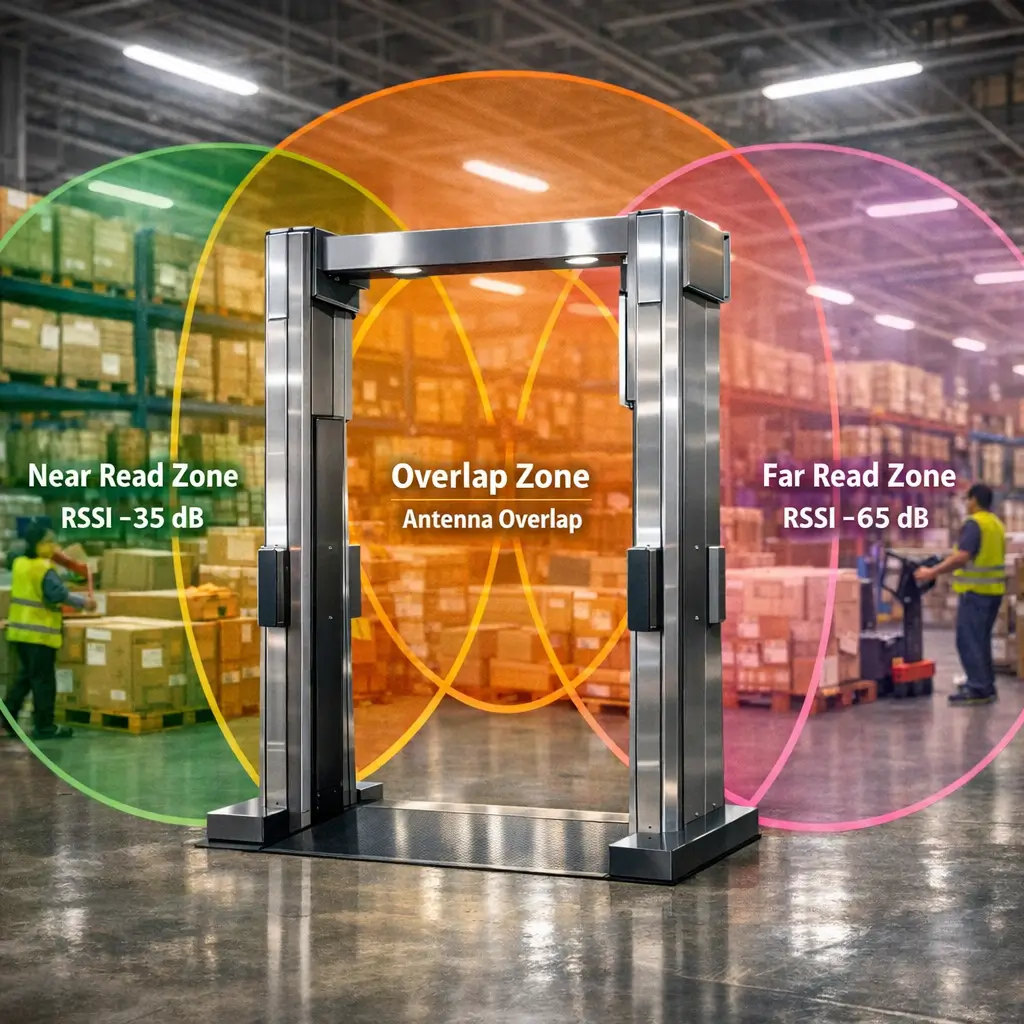

By pairing 4 antennas in a sequenced firing order and analyzing the RF phase angle (Doppler effect) and RSSI signal slope, the directional algorithm calculates the motion vector in real-time.

Unit Price

₹1,50,000

WhatsApp Request Hardware Specs

RFID SOFTWARES

Enterprise RFID Hardware & Cloud Middleware Solutions

www.rfidsoftwares.com • info@rfidsoftwares.com • +91 9791492742

OFFICIAL TECHNICAL DATASHEET

Model / SKU: PRD_INT_IMPINJ_SPEEDWAY

HSN Code: 85238020

Issued: 14 Oct 2026

RFID Integration

Impinj Speedway R700 / R420 IoT Gateway Middleware | Octane SDK & MQTT

High-Speed Conveyor & Portal Scanning with Directional Vector Calculation

Commercial & Procurement Summary

Catalog Price:	₹1,50,000 (+ 18% GST: ₹1,77,000)
Category / SubCategory:	Industrial IoT Gateways
Procurement & Lead Time:	Ready Stock • Dispatched within 2–4 Business Days Across India
Warranty & Testing:	1-Year Comprehensive Warranty • 100% Pre-Shipment Tested & Calibrated

Executive Product Overview

Enterprise IoT middleware for Impinj Speedway R700 and R420 RFID readers. Directional pallet tracking, MQTT telemetry streams, and Octane SDK edge filtering.

Technical Specifications & Operational Parameters

Engineering Parameter	Technical Specification / Capability
Impinj Models	Impinj Speedway R700, R420, R220, xArray overhead ceiling gateway
Streaming Protocols	MQTT 3.1.1/5.0, Apache Kafka, WebSockets, gRPC, REST Webhooks
Conveyor Speed	Reliable tag capture at belt velocities up to 3.0 m/s (600 ft/min)
Directional Algorithm	Phase angle & RSSI vector analysis determining transit orientation
Edge Compute	Runs on on-reader Capless architecture or external edge microserver

Find the Exact Reader & Tag for Your Facility

Enterprise RFID Starter Kit

Jewelry RFID Starter Kit

School UHF Automatic Attendance

Garment Manufacturing Tracking

Manufacturing RFID Bundle

Custom RFID Sample Tag Packs

Internal Jobs

Global RFID Jobs

Bench Tested & Frequency Calibrated

Enterprise Hardware Standards & Deliverables

Impinj Speedway R700 / R420 IoT Gateway Middleware

100% Full Source Code Ownership & Perpetual License

Need Edge Reader Middleware or ERP Sync?

Description

Specifications

Hardware SDK & Edge API Quickstart

Industrial GPIO Pinout & Modbus TCP Register Map

PLC Modbus TCP Register Memory Mapping (Siemens S7-1200 / Rockwell CompactLogix)

UHF RFID Read Range & Link Budget Estimator

Watch Impinj Speedway R700 / R420 IoT Gateway Middleware | Octane SDK & MQTT in Action

What's in the Box & Hardware Blueprint

Industrial Fixed Reader Hub (4/8 Port)

24V 3.0A Regulated Power Supply & Cord

LMR-240 Double-Shielded RF Cables (3m)

Heavy-Duty Aluminum VESA Mounting Kit

Opto-Isolated GPIO Terminal Block

OpenRFID Edge Daemon License (1-Year)

Need a 14-Day Physical On-Site Pilot Evaluation?

Interactive RFID Engineering Tools & Calculators

RFID Link Budget Calculator

Antenna Coverage & Beamwidth Calculator

RFID Portal Velocity Calculator

Questions

Technical Specifications & Operational Parameters
