Operating standard: ISO 14443A / 15693 (NFC) at 13.56 MHz (HF / NFC). Every reader, antenna, and tag batch is verified for read sensitivity, return loss (S11), and firmware stability prior to Indian warehouse dispatch.
Sensitivity ISO RF Verified
Warranty 1-Year Replacement
Support Free SDK & Drivers
Same-Week Noida Lab Dispatch
Smart Kiosks & Gates
RFID Self-Checkout Kiosk Terminal for Libraries and Retail
Patron-Operated Self-Issue & Self-Return Kiosk for Libraries & Retail
✨Simple Explanation with AI OS: Windows 10/11 IoT Enterprise or Linux Ubuntu Desktop
₹2,20,000
★ 4.6
Wholesale & custom volume pricing available. Get an instant quote below.
Heavy-Duty Industrial Build
Integrated Alarm & GPIO
Pan-India Dispatch
Remote / On-Site Setup
Description

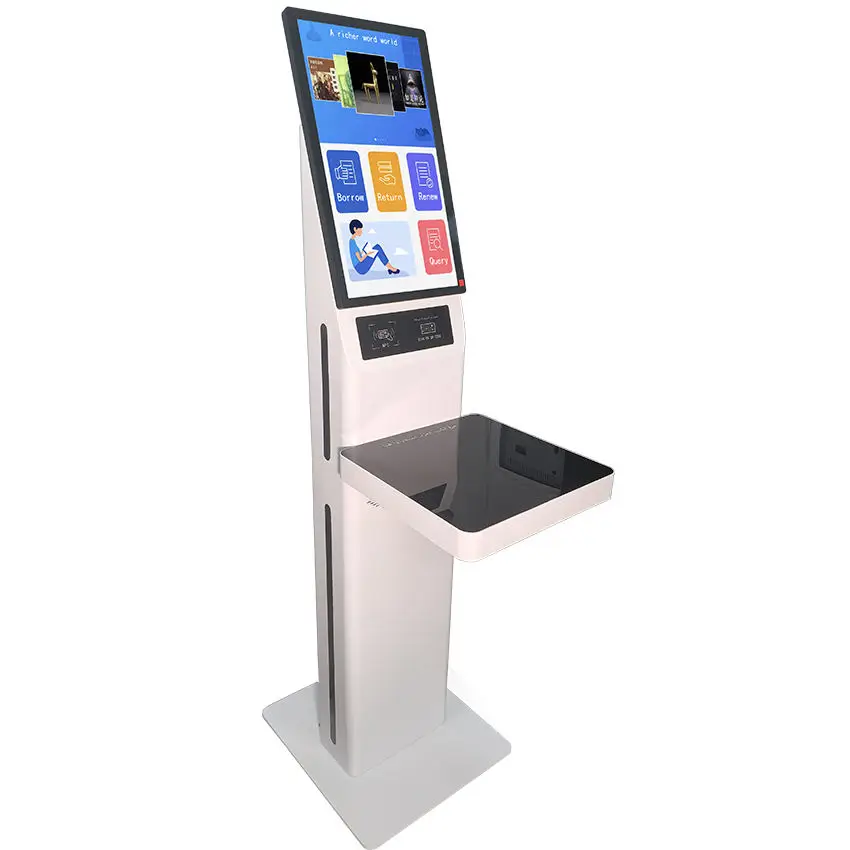

The RFID Self-Checkout Kiosk Terminal for Libraries and Retail (Model: PRD_HW_KIOSK) is an all-in-one, touchscreen interactive self-service terminal designed for public libraries, university resource centers, luxury retail boutiques, corporate micro-markets, and smart canteens. Featuring an ergonomic powder-coated steel floor kiosk housing a bright 21.5-inch Full HD capacitive touchscreen, high-speed RFID multi-tag scanner, 80mm thermal receipt printer, and optical barcode/QR reader, this kiosk empowers patrons to complete borrow, return, and checkout transactions in seconds.
1. High-Speed Multi-Item Stack Interrogation Physics
Equipped with an integrated shielded High-Frequency (ISO 15693 / ISO 14443A) or RAIN UHF RFID flatbed scanning pad, the kiosk reads an entire stack of 5 to 10 books or apparel items simultaneously in under 1.0 second without requiring items to be scanned one by one. The shielded scanning bay prevents accidental reading of items carried by passersby.
2. Seamless Koha ILS / Retail POS Integration & Patron Authentication
The terminal includes an integrated smart card / barcode reader for patron authentication (scanning student ID cards, RFID employee badges, or library cards). Communicating via 3M SIP2, NCIP, and REST APIs, it automatically updates library records, deactivates EAS anti-theft security bits, and prints detailed transaction receipts.
Specifications
- Model Number
- PRD-RFID-KIOSK-21
- Touchscreen Display
- 21.5-Inch Full HD (1920 × 1080) 10-Point Capacitive Multi-Touch LCD
- Internal Computer
- Intel Core i3 / i5 Industrial Processor | 8 GB RAM | 128 GB SSD
- Operating System
- Windows 10/11 IoT Enterprise or Linux Ubuntu Desktop
- RFID Technology Options
- HF ISO 15693 (NXP ICODE SLIX) for Libraries OR RAIN UHF (865–867 MHz) for Retail
- Stack Scan Capacity
- Reads 5 to 10 Tagged Items Simultaneously in < 1.0 Second
- Receipt Printer
- Integrated 80 mm Thermal Receipt Printer with Auto-Cutter (200 mm/sec)
- Patron ID Scanner
- Omnidirectional 1D/2D Barcode & QR Code Reader + HF/NFC Badge Reader
- Library ILS Protocols
- 3M SIP2, NCIP, Koha REST API, Alma, Evergreen, Sierra 3M SIP2 & NCIPIndustry SpecificTCP3M SIP2 & NCIP Library Automation Protocols
The universal communication protocol connecting RFID self-checkout kiosks, book return chutes, and security gates to Integrated Library Systems (ILS) like Koha and Alma.
View Protocol Code & Specs - Kiosk Construction
- Heavy-Duty 1.5mm Cold-Rolled Powder-Coated Steel Chassis with Lock
- Network Interfaces
- Gigabit 10/100/1000 Ethernet (RJ45), Dual-Band Wi-Fi 802.11ac
- Operating Voltage
- 110V – 240V AC, 50/60 Hz with Internal Surge Protection
- Weight
- 48.00 kg (Shipping Weight: Sheet Metal Kiosk + 21.5" Touchscreen + Reader + Printer / Net: 42.00 kg)
Live Demonstration
Browse All Video Blueprints → Watch RFID Self-Checkout Kiosk Terminal for Libraries and Retail in Action
Video 1 of 1
RFID Self-Checkout Kiosk Terminal for Libraries and Retail - Live Demonstration
Real field testing and operational validation demonstration conducted at our lab & partner facilities.
Field Proven & Certified
Verified Field Deployments & Technical Standards
Real customer results, companion bench video demonstrations, and official engineering setup documentation for RFID Self-Checkout Kiosk Terminal for Libraries and Retail.
Verified Reviews
4.6out of 5
Based on 5 verified client reviews.
Genuine Enterprise Feedback
Verified Project Deployments
Gohar, Founder at Fresh Book Technology
Verified Project
"Integrates with our Koha database over SIP2 in minutes. Sleek construction and very reliable printer."
Shikha Kaur Sodhi, Co-Founder at Arora Mobile World (aroramobileworld.com)
Verified Project
"Great self-service option for our retail store. Fast scanning of multiple items simultaneously."
Manish Kumar, Head Librarian at Apex Institute
Verified Project
"Integrated barcode reader and RFID tray handle hybrid checkout items without friction."
Mr. Anil Kumar, Tech Mart Director
Verified Project
"Receipt printing and card payment terminal integration work flawlessly."
Engineering & Planning Hub
View All 23 Developer Tools → Interactive RFID Engineering Tools & Calculators
Use our free interactive calculators and simulators to model RF physics, calculate link budgets, estimate ROI, and configure EPC tags.
RF Physics
Launch Tool →
RFID Link Budget & Range Calculator
Model RF physics, antenna power levels (+36 dBm WPC), and theoretical read distances in seconds.
Open Interactive Calculator →
Financial Model
Launch Tool →
RFID ROI & Payback Calculator
Quantify labor savings, cycle count speed improvements, and 12-month return on investment.
Open Interactive Calculator →
Instant Quote
Launch Tool →
Bill of Materials (BOM) Generator
Build a customized hardware, tags, and cloud software quotation proposal for your facility.
Open Interactive Calculator →
Questions
How does the self-checkout kiosk interact with the Koha Library Management System?
The kiosk connects to Koha via the 3M SIP2 protocol (Port 6001). When a patron scans their library card and places a stack of books on the RFID pad, the kiosk checks out the items in Koha and automatically deactivates their EAS anti-theft bits.
Can patrons borrow multiple books at once without scanning barcodes individually?
Yes. The shielded RFID flatbed scanning pad reads an entire stack of 5 to 10 books simultaneously in under 1 second, making borrowing effortless and eliminating checkout queue congestion.
Can this kiosk be used for retail store self-checkout of apparel and garments?
Yes. When configured with our RAIN UHF RFID flatbed and retail POS software, shoppers can drop an entire basket of clothing into the scanning bay, pay via UPI/credit card, and receive an instant receipt.
What is the HSN Code and GST rate for self-checkout kiosks in India?
Self-service kiosks fall under HSN Code 84714190 / 84719000 with an 18% GST rate. RFID Softwares supplies universities, public libraries, and retail chains across India with complete installation and GST invoicing.
Does the kiosk include a receipt printer and patron barcode scanner?
Yes. The kiosk includes an integrated high-speed 80mm thermal receipt printer with auto-cutter, an omnidirectional 1D/2D barcode reader for digital ID cards, and an NFC smart card reader.
