Enterprise Laptop Anti-Theft & Automated Gate Tracking with Dual-Layer RFID

Modern IT conglomerates, BPOs, and financial tech firms manage thousands of high-value employee laptops that regularly enter and exit corporate premises. Traditional manual security logs, barcode asset stickers, and random bag inspections create severe lobby congestion, are prone to human error, and fail to prevent intentional component swapping or theft. A leading technology enterprise in Noida operating 5,000+ developer laptops required an intelligent, automated, and tamper-resistant security solution that could identify every laptop in real time as employees walked through lobby turnstiles—without requiring them to remove laptops from their backpacks.

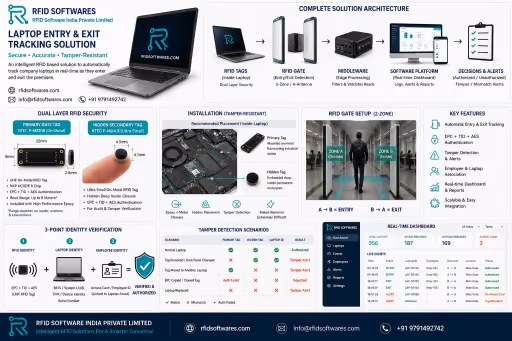

Because laptops feature metallic frames and internal shielding that detune standard RF tags, RFID Softwares engineered a groundbreaking Dual-Layer Tagging Architecture combining two specialized on-metal FR4 transponders:

1. Primary Gate Tag (High Temperature Anti-Metal Tag P-M3613): Measuring 36 x 13 x 3.4 mm, this high-gain tag is bonded to the interior metal frame using structural epoxy resin. Powered by NXP UCODE 8 silicon, it delivers an extended read range of up to 8 meters, enabling instantaneous detection as employees pass through turnstiles.

2. Hidden Secondary Audit Tag (Micro Embedded FR4 Tag P-MD4.5): Measuring just 4.5 mm in diameter, this ultra-small cylindrical micro tag is embedded deep inside the internal motherboard cavity or hinge bracket. It acts as a covert anti-tamper anchor that exposes any unauthorized chassis swap or exterior tag removal during security audits.

To guarantee 100% tamper resistance and eliminate identity fraud, the system executes real-time 3-Point Verification every time a transit event occurs:

• Point 1: RFID Identity (EPC + Factory TID + AES): Reads both the unique EPC number and the unalterable 96-bit factory TID from the NXP UCODE 8 silicon, preventing cloned tags.
• Point 2: Laptop Hardware Identity (BIOS UUID / TPM 2.0 Serial): Cryptographically binds the RFID tags to the laptop's motherboard BIOS UUID and TPM serial recorded during IT onboarding.
• Point 3: Employee Access Identity (Corporate Smart Card): Links the specific device asset to the authorized employee's ID badge and department access profile.

Only when [RFID Identity] + [Laptop Identity] + [Employee Identity] match the central asset database does the turnstile gate grant authorized entry or exit clearance.

Each security corridor and turnstile lane is equipped with a 2-Zone / 4-Antenna RFID Gate Portal (UHF RFID Security Gate Portal). As employees walk through:

• Zone A (Outside Lobby) to Zone B (Inside Premises): Triggers an automated ENTRY transaction in under 200 milliseconds.
• Zone B (Inside Premises) to Zone A (Outside Premises): Triggers an automated EXIT transaction.

Our edge middleware processes RSSI signal trajectories and antenna trigger sequences to determine movement vector direction without false triggers from stationary employees waiting nearby.

The system features automated threat detection rules that immediately trigger visual/audible alarms and lock turnstile barriers under physical tampering attempts:

The physical gate portals stream raw reads directly to our OpenRFID Middleware Platform running on local edge mini-PCs. The middleware deduplicates multi-antenna reads, enforces cryptographic rules, and feeds a centralized web-based SOC Dashboard:

• Live Telemetry: Real-time counters showing total laptops (e.g. 3,450), total inside premises (2,180), total outside (1,270), and daily alert counts.
• Live Event Stream: Live tabular stream displaying exact timestamp, employee name/photo, laptop serial, gate location, direction, and authorization status.
• Automated Escalation: Triggers instant WhatsApp and SMS alerts to IT security heads whenever an unapproved device attempts egress.

Over the first 12 months following deployment across the enterprise campus:

• 100% Loss Elimination: Zero unaccounted laptop disappearances across 5,000+ active devices.
• 95% Reduction in Lobby Bottlenecks: Gate transit verification occurs in under 0.2 seconds per employee, completely replacing manual paper gate pass queues.
• Regulatory Compliance: Full compliance with ISO 27001 physical security standards and SOC 2 data protection mandates.
• Rapid ROI: Capital expenditure recovered in less than 5 months purely through asset loss prevention and automated auditing labor savings.
