Corporate IT Asset & Tool Handover RFID Smart Locker System Case Study

A multinational IT technology campus employing over 4,500 engineers and field technicians operates 24/7 round-the-clock shift cycles. IT helpdesk personnel spent hundreds of hours every month manually issuing, returning, and tracking high-value company assets—including replacement laptops, diagnostic multimeters (such as Fluke 87V), oscilloscopes, specialized developer toolkits, and temporary loaner hardware.

The Operational Crisis:

• Off-Hours Handover Paralysis: Night-shift and weekend engineers faced multi-hour delays when laptops malfunctioned because the IT helpdesk desk was unstaffed, crippling software development velocity.
• Manual Spreadsheet Blindspots: Paper logs and manual spreadsheets caused lost equipment, missing warranty serials, untracked damage, and unverified chain-of-custody disputes.
• Locker Hoarding & Missing Assets: Without automated return enforcement, employees hoarded specialized calibration instruments at their desks for weeks, forcing procurement to purchase redundant, expensive duplicate tools.

To create a completely autonomous, military-grade asset dispenser, RFID Softwares engineered custom heavy-gauge steel 18-door locker enclosures (D01 through D18) driven by our Smart Locker Mini-PC Controller & Software System:

• DW200 Linux Edge Gateway: An industrial embedded Linux edge gateway communicating directly with FITLOCK relay modules over an isolated RS-485 bus and local MQTT broker topics (fitlock/command/unlock, fitlock/status/door).
• 12V Heavy-Duty Solenoid Latches: Micro-second electrical pulse actuation pops the spring-loaded door open instantly upon authenticated command while drawing negligible standby power.
• Integrated Magnetic Reed Door Sensors: Every compartment features real-time magnetic position sensors that continuously verify whether the door is physically locked, open, or ajar—eliminating false pickup registrations and triggering audio-visual warnings if a door remains unlatched beyond 30 seconds.

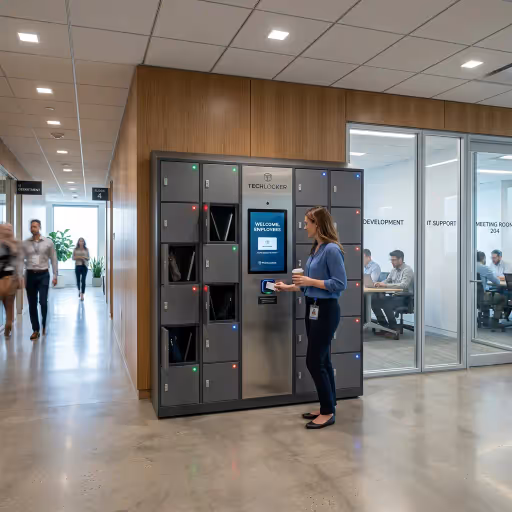

Mounted flush on the central cabinet column is a high-contrast industrial touchscreen terminal running our kiosk frontend:

• Corporate Badge Authentication: Employees simply tap their standard 13.56 MHz corporate HF employee smart card (HF RFID PVC Cards) on the integrated reader panel. The system validates the UID in sub-200ms.
• Multi-Factor PIN Verification & Virtual Keyboard: For high-security equipment or card-less access, employees authenticate using their 4-to-8 digit personal PIN via an on-screen responsive numeric/QWERTY virtual keypad.
• Emergency One-Time Code (OTC) Pickup: Remote contractors and new joiners who have not yet received physical badges can enter an encrypted SMS/email One-Time Code (OTC) generated by the IT administrator to unlock their assigned laptop compartment in under 15 seconds.
• Direct Borrow & Return Flow: The screen displays assigned compartments with green illuminated pickup indicators. Upon closing the door, the system prompts the employee to confirm asset condition before finalizing the return transaction.

Employees can manage equipment loans from any laptop or mobile browser via the self-service web portal (?mode=portal):

• Rich Equipment Catalogue: Search and filter active inventory by category (Tools, IT Assets, Instruments) with high-resolution photos, model numbers, warranty status, and real-time availability badges.
• Interactive Date/Time Calendar Scheduling: When submitting a reservation, employees select their exact pickup time window and anticipated return deadline. The scheduling engine locks the time slot to guarantee asset availability upon arrival.
• Personal Shift Locker Booking: Staff requiring secure temporary storage for personal items (laptop backpacks, safety gear, test circuit boards) can book dedicated personal compartments for their active shift window.
• One-Click Loan Extensions & Self-Service PIN Resets: If a field task runs over schedule, employees submit extension requests directly from their portal dashboard, providing project justification for automated IT manager review.

IT administrators maintain complete real-time governance over all lockers via the management console (?mode=admin):

• Dynamic 18-Door Fluid Grid: Real-time visual matrix displaying door status (CLOSED, OPEN, FAULT / OUT OF SERVICE), assigned asset details, and active employee loans with one-click remote solenoid unlock overrides.

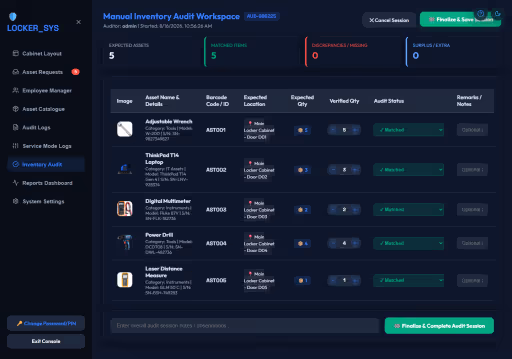

• Dedicated Inventory Audit Workspace: IT supervisors execute scheduled digital stock audits. The system cross-references active physical locker contents against ERP serial numbers, instantly flagging discrepancies or missing tools.
• Autonomous 60-Second Overdue Engine: A background daemon monitors active loans against scheduled return deadlines. If an asset exceeds its loan window, the system automatically transitions the record to OVERDUE, alerts the employee via automated email/SMS, and broadcasts high-priority push notifications to IT dashboards.
• Security Lockout Policies: Automatically freezes accounts for 15 minutes after 5 consecutive failed PIN attempts, logging tamper attempts with audit timestamps.

Deploying the IoT RFID Smart Locker solution transformed corporate IT operations across the tech campus:

• 95% Reduction in IT Support Overhead: Automated self-service asset distribution eliminated 28+ hours of manual helpdesk sign-out paperwork weekly.
• Zero Missing Laptops or Equipment: 100% verified digital chain of custody with exact card UID signatures and door open/close timestamps.
• 24/7 Uninterrupted Shift Handovers: Night and weekend engineering shifts retrieve replacement laptops and tools in under 20 seconds without waiting for IT staff.
• Full Payback in 3.2 Months: Rapid elimination of lost tool write-offs, reduced duplicate tool purchases, and labor savings recouped total hardware and software investment in 96 days.
