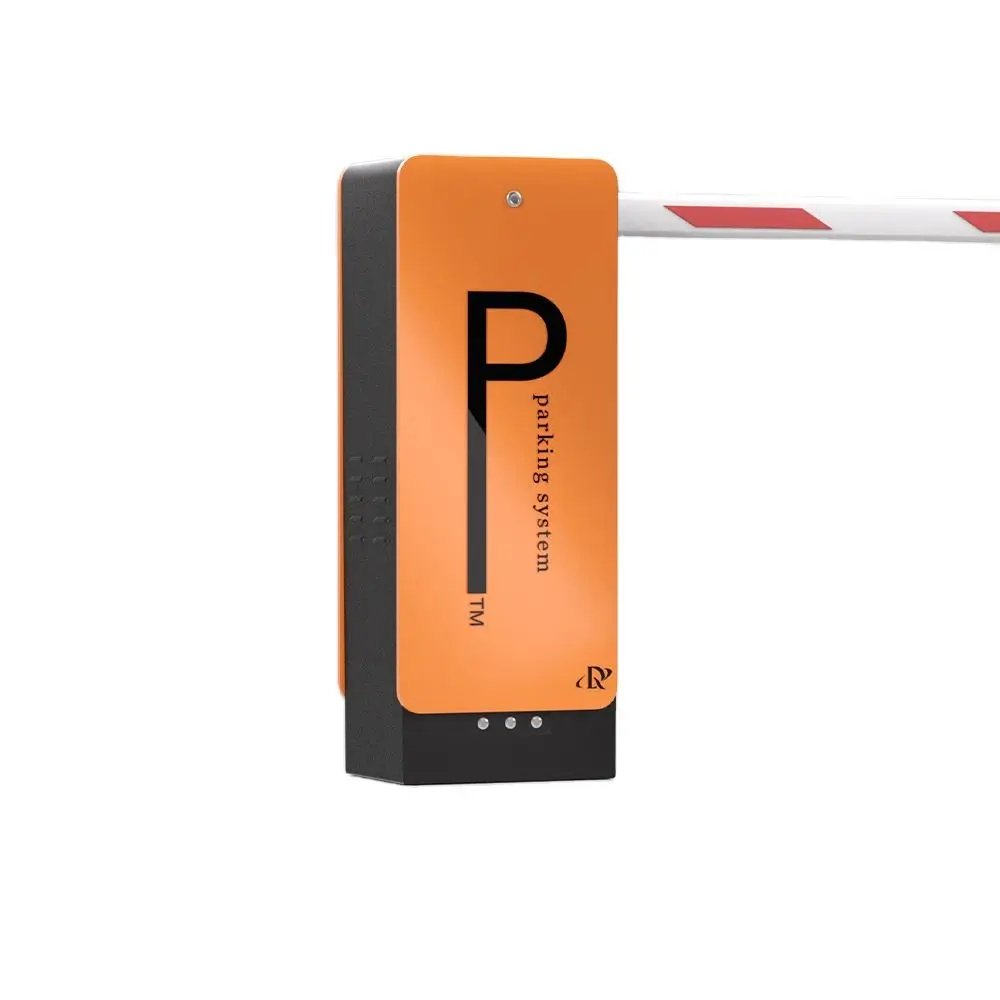

Automatic RFID Boom Barrier & 20m Long-Range UHF Reader Kit

The Automatic RFID Boom Barrier & 20m Long-Range UHF Reader Kit (Model: PRD_BOOM_BARRIER_KIT) is an all-inclusive, enterprise-grade automated vehicle access management system engineered for residential gated communities, corporate IT parks, industrial logistics yards, commercial multi-level parking lots, and highway toll plazas across India. Combining a heavy-duty DC brushless servo boom barrier (100% duty cycle, 10 million MTBF cycles) with an integrated 20-meter long-range UHF RFID directional reader, this complete kit delivers seamless, hands-free vehicle entry and exit without requiring drivers to stop or roll down windows.

1. Heavy-Duty DC Brushless Servo Motor & Dynamic Speed Control

The boom barrier cabinet houses an industrial-grade DC brushless servo motor and planetary reducer gear mechanism engineered for continuous 24/7 heavy traffic. It supports electronic speed adjustment between 0.9 seconds and 6.0 seconds based on arm length and site throughput requirements. The 100% duty cycle motor generates zero heat buildup during peak rush hours, outperforming traditional AC induction barrier motors.

2. Integrated 20-Meter Long-Range UHF RFID Reader & FASTag Compatibility

The system includes an IP65 weatherproof integrated UHF RFID directional reader with a high-gain 12 dBi circular polarized antenna tuned specifically for the Indian WPC 865.0 MHz to 867.0 MHz frequency band. The reader captures moving vehicle windshield tags, headlamp stickers, and standard Indian NETC FASTag transponders (EPC Gen2 / ISO 18000-6C) at distances up to 20 meters and speeds up to 40 km/h. The narrow-cone RF radiation pattern prevents cross-lane ghost reads from adjacent entrance/exit bays.

3. Dual-Layer Anti-Smash Safety & Auto-Reversing Protection

To ensure total vehicle and pedestrian safety, the system incorporates two independent safety mechanisms:

• Inductive Vehicle Loop Detector: Real-time underground metallic mass detection holds the barrier open while any vehicle is positioned beneath the arm.
• Intelligent Current Auto-Reversing: If the aluminum boom touches any unexpected obstacle during closing, the intelligent servo drive detects the micro-resistance and auto-reverses the boom upward within 0.2 seconds, preventing vehicle dents or glass damage.

4. Complete All-Inclusive Turnkey Kit Inclusions

Every kit arrives factory-tested and ready for rapid field deployment:

• 1x Heavy-Duty Boom Barrier Cabinet: 2.0mm cold-rolled steel, electrostatic powder-coated IP65 housing (Dimensions: 350 × 282 × 1000 mm, 68 kg).
• 1x 6.0m Aluminum Alloy Boom Arm: Octagonal straight boom with red reflective safety decals and soft rubber bottom bumper.
• 1x 20m Integrated UHF RFID Long-Range Reader: 12 dBi circular polarized antenna, IP65 outdoor casing, and adjustable stainless-steel pole bracket.
• 1x Dual-Channel Vehicle Loop Detector: In-ground inductive sensor with multi-frequency tuning to prevent adjacent loop crosstalk.
• 1x RFID Access Controller Mainboard: Embedded controller with Wiegand 26/34, RS485, TCP/IP Ethernet, and relay dry contacts.
• 2x Wireless Remote Control Fobs: Handheld RF transmitters (30–50m operating range) + mechanical manual release keys for power outage bypass.
• 100x Tamper-Evident UHF Windshield Tags: Self-destructing adhesive vehicle windshield tags (FASTag Gen2 ISO 18000-6C).
