Desktop Encoders

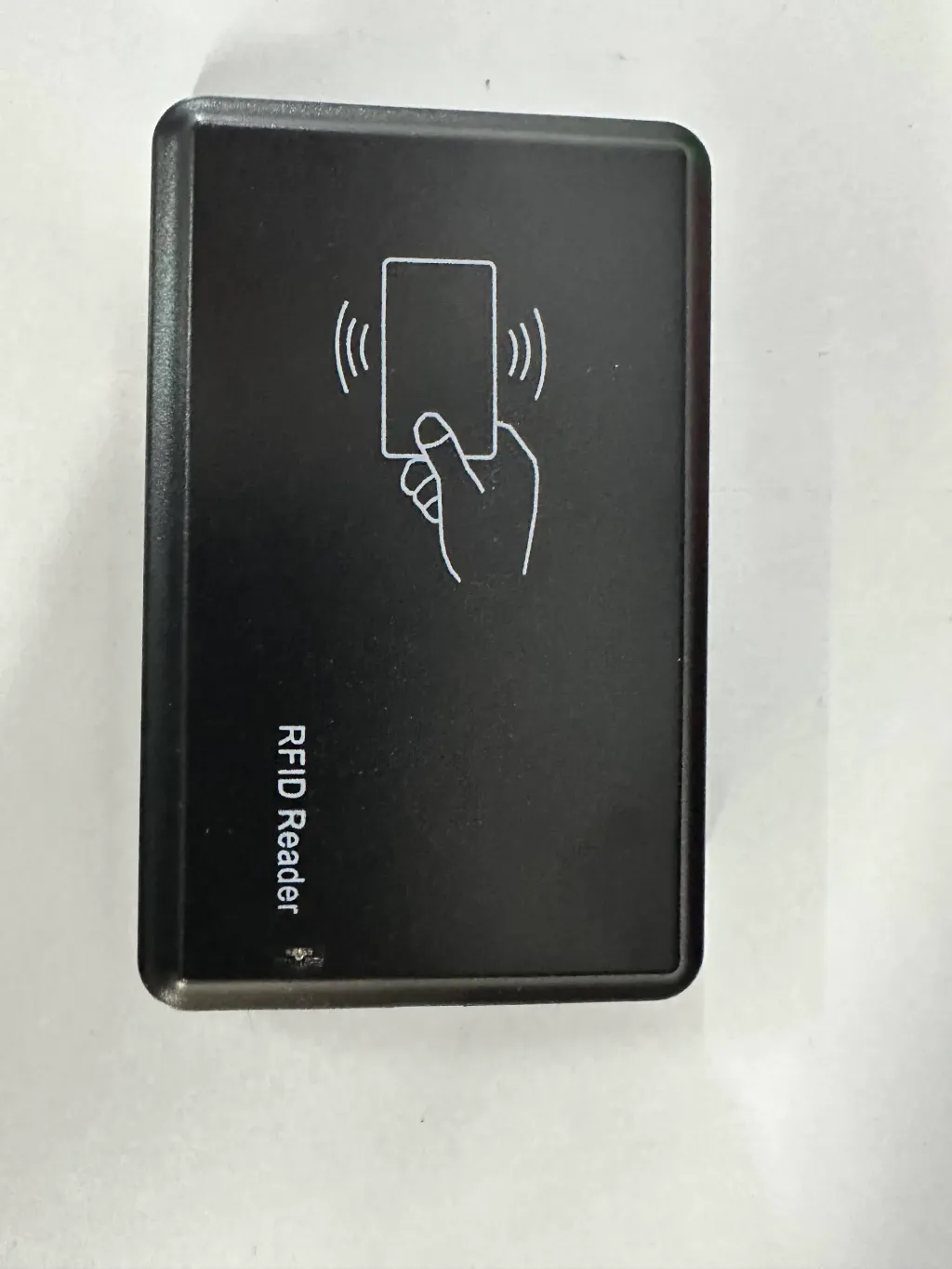

13.56MHz ISO 15693 & 14443A Mifare USB & RS232 Reader Writer

Name: RFID Softwares
Address: Gate No 1, Plot No 217, Gali No. 7, near AMRAPALI SAPPHIRE, Sadarpur Colony, Village Chhalera & Sadarpur, Sadarpur, Sector-45, Noida, Uttar Pradesh 201301, Noida, Uttar Pradesh, 201301, IN
Telephone: +91 9791492742
Price range: ₹₹
Rating: 4.9

Industrial Multi-Protocol HF Tag & Smart Card Programmer for Libraries, Labs & Healthcare

✨Simple Explanation with AI Freq: 13.56 MHz (High Frequency)

₹15,000

Wholesale & custom volume pricing available. Get an instant quote below.

Request Hardware Specs & Volume Pricing Instant Quote on WhatsApp

Enterprise Assurances

1-Year OEM Warranty

Plug & Play USB HID / CDC

Pan-India Dispatch

SDK & Tag Utility Included

Need POS / Web App Scanner Integration?

Connect USB desktop reader-writers directly to browser-based POS, desktop billing software, or access card issuance desks with zero driver headaches.

Integration Consultation Browse Middlewares

Description

Specifications

Model Number: PRD-HF-15693-14443A-RW
Operating Frequency: 13.56 MHz (High Frequency)
Supported Protocols: ISO/IEC 15693, ISO/IEC 14443 Type A, ISO/IEC 18000-3 Mode 1
Supported Chips: NXP I-Code SLI, I-Code SLIX, TI Tag-it HF-I, Mifare Classic 1K/4K, Mifare Ultralight, NTAG213/215/216, Desfire EV1/EV2/EV3
Functionality: Full Read & Write (UID reading, Sector Block writing, Key A/Key B authentication, EAS bit set/reset, AFI lock)
Communication Interfaces: Dual Interface: USB 2.0 (Virtual COM / HID) & RS-232 Serial Port (DB9, 9600 to 115200 bps)

RS232 / RS485 Serial
Read/Write Distance: Up to 100 mm (ISO 15693 I-Code) / Up to 60 mm (ISO 14443A Mifare)
Operating Modes: Interactive SDK Mode, Virtual COM Protocol Mode, Automatic Keystroke Mode
Included Software: Free Windows Desktop GUI Encoder Utility (Batch read, write, sector key config, EAS toggle) + OpenRFID SDK
SDK & Developer Support: C# .NET 8, C++ Native, Python 3, Java, WebAssembly REST bridge examples with complete documentation
Power Supply: USB Bus Powered (5V DC) or External 9V-12V DC for RS-232 industrial setups
Antenna Design: Integrated High-Q Tuned PCB Loop Antenna with RF shielding on base
Operating Temperature: -20°C to +70°C (-4°F to +158°F)
Dimensions & Weight: 120 mm × 80 mm × 16 mm | Weight: 120 grams

Developer Integration Kit • OpenRFID Ready

Hardware SDK & Edge API Quickstart

Connect, configure RF power (10–33 dBm), and stream tag inventory to your ERP / backend in under 5 minutes.

Protocol

LLRP / RS-232 / REST

Read Rate

Up to 750 tags/sec

💡

Why this matters to your business: You are not locked into proprietary software. Our open integration drivers allow your internal IT team or ERP vendor (SAP, Tally, Zoho, Oracle) to directly ingest live RFID scans without expensive recurring middleware licensing fees.

RfidReaderIntegration.cs

API Ready

using OpenRFID.Core.Drivers;
using OpenRFID.Core.Models;

// 1. Initialize TCP/LLRP Connection
using var cts = new CancellationTokenSource(TimeSpan.FromSeconds(30));
var reader = new OpenRfidClient(ip: "192.168.1.116", port: 5084);

await reader.ConnectAsync(cts.Token);
await reader.SetPowerAsync(antennaId: 1, txPowerDbm: 30.0); // India WPC 865-867 MHz

// 2. Stream Real-time RFID Inventory Events with Lock-Free Channel
await foreach (var tag in reader.StreamTagsAsync(cts.Token))
{
    Console.WriteLine("[LIVE READ] EPC: " + tag.EpcHex + " | RSSI: " + tag.RssiDbm + " dBm");

    // Dispatches directly to SAP / Tally / SQL Database queue
    await erpBridge.PushBatchAsync(tag);
}

import asyncio
import json

# Async Socket Streaming Client
async def stream_rfid_inventory(host="192.168.1.116", port=5084):
    reader, writer = await asyncio.open_connection(host, port)
    print("Connected to RFID Reader at " + host + ":" + str(port))

    try:
        while True:
            line = await reader.readline()
            if not line: break
            tag = json.loads(line.decode('utf-8'))
            print("[TAG DETECTED] EPC=" + str(tag['epc']) + ", RSSI=" + str(tag['rssi']))
    finally:
        writer.close()
        await writer.wait_closed()

asyncio.run(stream_rfid_inventory())

#include <iostream>
#include <vector>
#include <boost/asio.hpp>

// RS-232 Raw Frame (Header: 0xA0, Length: 0x04, ReaderId: 0x01, Realtime Inventory: 0x89)
const std::vector<uint8_t> INVENTORY_CMD = { 0xA0, 0x04, 0x01, 0x89, 0x01, 0xD1 };

void poll_reader(boost::asio::serial_port& port) {
    boost::asio::write(port, boost::asio::buffer(INVENTORY_CMD));
    std::vector<uint8_t> response(64);
    port.read_some(boost::asio::buffer(response));
    std::cout << "Received Raw EPC Bytes: " << response.size() << std::endl;
}

# Push real-time batch scan payload to OpenRFID Cloud Ingestion API
curl -X POST https://api.rfidsoftwares.com/v1/ingest/batch \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer YOUR_API_TOKEN" \
  -d '{
    "readerId": "iso-15693-14443a-1356mhz-mifare-usb-rs232-reader-writer",
    "warehouseId": "WH-MUMBAI-01",
    "timestamp": "2026-09-28T14:30:00Z",
    "tags": [
      { "epc": "E28011606000020478059012", "rssi": -48.5, "antenna": 1, "count": 14 },
      { "epc": "E28011606000020478059013", "rssi": -52.1, "antenna": 2, "count": 8 }
    ]
  }'

Supports SAP / Tally Prime Sub-10ms Latency WPC Certified Frequency

Explore Middleware Catalog

Live Demonstration

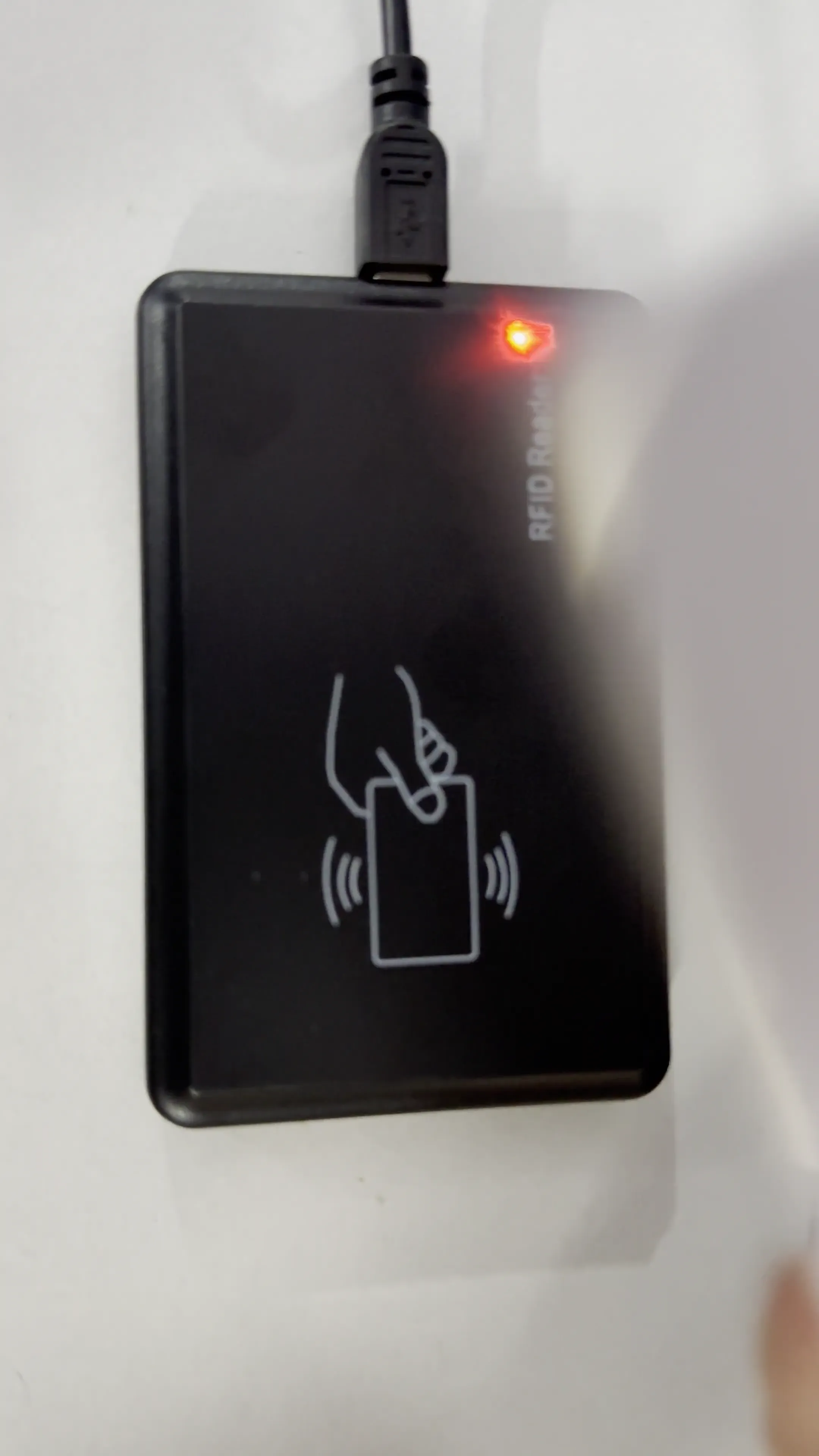

Watch 13.56MHz ISO 15693 & 14443A Mifare USB & RS232 Reader Writer | Free Software & SDK in Action

Browse All Video Blueprints →

Real field testing and operational validation demonstration conducted at our lab & partner facilities. Demonstrates read distance, physical durability, and live interrogation.

Packaging & Accessories

What's in the Box & Hardware Blueprint

Every unit is factory-inspected, serialized, and paired with essential deployment accessories.

Fixed Industrial Portal / Conveyor Gateway

Industrial Fixed Reader Hub (4/8 Port)

1 Unit

IP53/IP65 aluminum chassis with PoE+ support

24V 3.0A Regulated Power Supply & Cord

1 Set

Universal AC input with surge protection

LMR-240 Double-Shielded RF Cables (3m)

4 Cables

Ultra-low attenuation SMA-Male to RP-TNC Male

Heavy-Duty Aluminum VESA Mounting Kit

1 Set

Vibration-damped bracket for portal masts

Opto-Isolated GPIO Terminal Block

1 Block

Plug for photocell beam sensors & light stack relays

OpenRFID Edge Daemon License (1-Year)

1 License

Native SAP RFC, Tally XML & LLRP bridge

💡

Need a 14-Day Physical On-Site Pilot Evaluation?

We offer paid 14-day on-site pilot trials with demo setup in Delhi-NCR (minimum ~₹50,000+ demo POC fee + refundable hardware deposit). Remote-assisted starter packs available across India.

Book Paid Pilot Trial

Engineering & Planning Hub

Interactive RFID Engineering Tools & Calculators

Use our free interactive calculators and simulators to model RF physics, calculate link budgets, estimate ROI, and configure EPC tags.

View All 23 Developer Tools →

Financial ROI Launch Tool →

RFID ROI & Payback Calculator

Calculate 12-month return on investment, shrinkage reduction, and labor hours saved for your facility.

Open Interactive Calculator →

Budgeting Launch Tool →

RFID Project Cost Estimator

Estimate turnkey budget breakdown including readers, antennas, tags, cloud software, and on-site engineering.

Open Interactive Calculator →

Site Feasibility Launch Tool →

Site Survey Checklist Generator

Generate a customized engineering checklist covering RF noise floors, power drops, and portal mounting requirements.

Open Interactive Calculator →

Questions

What free software and SDKs are bundled with this 13.56MHz reader/writer?

The package includes our complete Windows Desktop Tag Encoding Suite, which allows you to read/write memory blocks, configure access keys, toggle EAS theft-prevention flags, and perform batch file operations. We also provide complete source code examples in C# .NET 8, C++, Python 3, and Java.

How does this device integrate with Koha and library management systems?

This device supports ISO 15693 RFID standards used by Koha, NewGenLib, and international library protocols. Catalogers can place a book on the desktop pad to automatically read the I-Code SLI UID, write the accession number into User Memory, and arm/disarm the EAS theft-prevention bit in one click.

Can this device toggle the EAS (Electronic Article Surveillance) security bit on I-Code SLI tags?

Yes. Full command-level support for ISO 15693 EAS set and reset commands is built directly into both the bundled Windows GUI utility and the developer SDK.

What is the difference between ISO 14443A and ISO 15693 protocols?

ISO 14443A (Mifare, NFC) is designed for high data security and short reading range (0 to 5 cm), ideal for transit, access control, and electronic wallets. ISO 15693 (I-Code SLI, Tag-it) is designed for vicinity reading with a longer range (up to 10–15 cm), ideal for library books, laundry inlays, and pharmaceutical tracking. This reader/writer supports both protocols.

Can this reader/writer connect directly to industrial PLCs via RS-232?

Yes. In addition to USB, it provides a native RS-232 serial interface (DB9 port) supporting standard ASCII/Hex polling and autonomous reporting protocols compatible with Siemens, Omron, and Delta industrial PLCs.

Unit Price

₹15,000

WhatsApp Request Hardware Specs

RFID SOFTWARES

Enterprise RFID Hardware & Cloud Middleware Solutions

www.rfidsoftwares.com • info@rfidsoftwares.com • +91 9791492742

OFFICIAL TECHNICAL DATASHEET

Model / SKU: PRD_HW_HF_15693_14443A_WRITER

HSN Code: 84719000

Issued: 11 Oct 2026

RFID Hardware Devices

13.56MHz ISO 15693 & 14443A Mifare USB & RS232 Reader Writer | Free Software & SDK

Industrial Multi-Protocol HF Tag & Smart Card Programmer for Libraries, Labs & Healthcare

Commercial & Procurement Summary

Catalog Price:	₹15,000 (+ 18% GST: ₹17,700)
Category / SubCategory:	Desktop Encoders
Procurement & Lead Time:	Ready Stock • Dispatched within 2–4 Business Days Across India
Warranty & Testing:	1-Year Comprehensive Warranty • 100% Pre-Shipment Tested & Calibrated

Executive Product Overview

Buy ISO 15693 & 14443A 13.56MHz Mifare Desktop Reader Writer at ₹15,000 with Free Software & SDK. Dual USB/RS232 interface for libraries & labs.

Technical Specifications & Operational Parameters

Engineering Parameter	Technical Specification / Capability
Model Number	PRD-HF-15693-14443A-RW
Operating Frequency	13.56 MHz (High Frequency)
Supported Protocols	ISO/IEC 15693, ISO/IEC 14443 Type A, ISO/IEC 18000-3 Mode 1
Supported Chips	NXP I-Code SLI, I-Code SLIX, TI Tag-it HF-I, Mifare Classic 1K/4K, Mifare Ultralight, NTAG213/215/216, Desfire EV1/EV2/EV3
Functionality	Full Read & Write (UID reading, Sector Block writing, Key A/Key B authentication, EAS bit set/reset, AFI lock)
Communication Interfaces	Dual Interface: USB 2.0 (Virtual COM / HID) & RS-232 Serial Port (DB9, 9600 to 115200 bps)
Read/Write Distance	Up to 100 mm (ISO 15693 I-Code) / Up to 60 mm (ISO 14443A Mifare)
Operating Modes	Interactive SDK Mode, Virtual COM Protocol Mode, Automatic Keystroke Mode
Included Software	Free Windows Desktop GUI Encoder Utility (Batch read, write, sector key config, EAS toggle) + OpenRFID SDK
SDK & Developer Support	C# .NET 8, C++ Native, Python 3, Java, WebAssembly REST bridge examples with complete documentation
Power Supply	USB Bus Powered (5V DC) or External 9V-12V DC for RS-232 industrial setups
Antenna Design	Integrated High-Q Tuned PCB Loop Antenna with RF shielding on base
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Dimensions & Weight	120 mm × 80 mm × 16 mm \| Weight: 120 grams
