EAS Security Systems

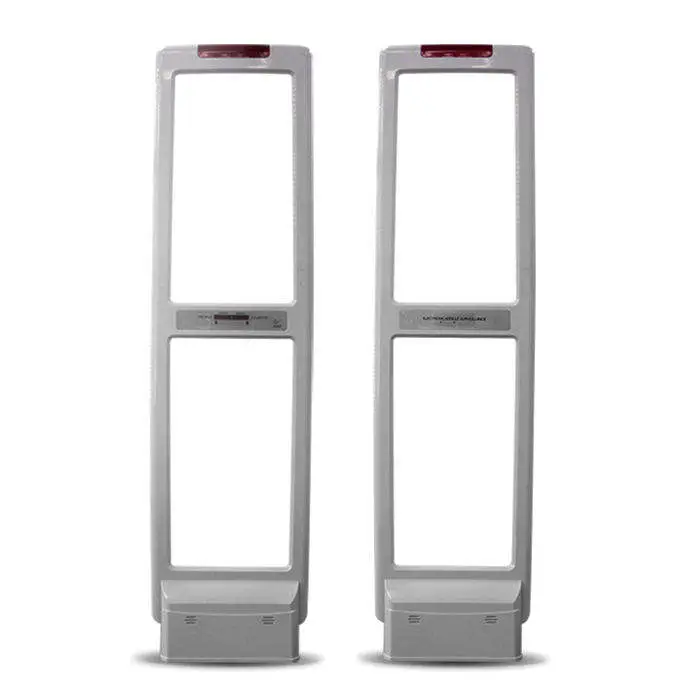

Elefine EF-A1809 / RFD-AMT06B 58kHz Acousto-Magnetic (AM) EAS Retail Security Pedestal Antenna Gate for Apparel & Garment Stores
Wholesale & custom volume pricing available. Get an instant quote below.
Enterprise Assurances
Avoid RF signal loss. Our engineering team assists with coaxial cable sizing (LMR-195 vs LMR-400), beamwidth portal alignment, and mounting bracket selection.
The Garment AM Frequency Anti-theft Solution for Clothing Stores (Model: EF-A1809 / RFD-AMT06B by Elefine) is an enterprise-grade 58 kHz Acousto-Magnetic (AM) electronic article surveillance (EAS) security pedestal gate designed specifically for retail clothing showrooms, fashion boutiques, department stores, and supermarkets. Engineered with high-efficiency 58 kHz transmitter/receiver loop antennas and digital signal processing (DSP) noise filtering, this alarming gate system provides exceptional detection range across wide entrance corridors while maintaining near-zero false alarms.
Unlike older 8.2 MHz Radio-Frequency (RF) systems that suffer signal degradation from metal zippers, foil-lined packaging, and human body shielding, 58 kHz Acousto-Magnetic (AM) technology operates on mechanical resonance. When a tagged garment passes through the pulsed 58 kHz magnetic field, the amorphous magnetic alloy strips inside the tag oscillate mechanically, generating a crisp acoustic response signal. This physics ensures 99%+ detection reliability for delicate apparel, thick denim, outerwear, and lingerie.
The Elefine EF-A1809 delivers expansive detection aisles up to 1.8m to 2.4m between antennas for standard security hard tags (Pencil, Golf, or Lanyard tags) and 1.2m to 1.6m for adhesive 58 kHz DR soft labels. Stores with wide glass facades can daisy-chain multiple antennas in Master/Slave configurations to cover broad mall corridors without unsightly center barriers.
Crafted from durable, impact-resistant ABS composite with clean architectural lines and an ivory finish (Dimensions: 1580 mm × 145 mm × 460 mm), the EF-A1809 integrates seamlessly into high-end apparel retail environments without clashing with showroom interior décor.
Equipped with a high-luminance multi-color LED alarm strobe bar mounted on top of the pedestal and an internal 95 dB piezo acoustic buzzer, the gate alerts store security instantly when unauthorized merchandise approaches the threshold. On-board software tuning allows engineers to adjust detection sensitivity, volume, and filter environmental electrical noise easily.
Every unit is factory pre-calibrated and delivered with:
Connect, configure RF power (10–33 dBm), and stream tag inventory to your ERP / backend in under 5 minutes.
using OpenRFID.Core.Drivers;
using OpenRFID.Core.Models;
// 1. Initialize TCP/LLRP Connection
using var cts = new CancellationTokenSource(TimeSpan.FromSeconds(30));
var reader = new OpenRfidClient(ip: "192.168.1.116", port: 5084);
await reader.ConnectAsync(cts.Token);
await reader.SetPowerAsync(antennaId: 1, txPowerDbm: 30.0); // India WPC 865-867 MHz
// 2. Stream Real-time RFID Inventory Events with Lock-Free Channel
await foreach (var tag in reader.StreamTagsAsync(cts.Token))
{
Console.WriteLine("[LIVE READ] EPC: " + tag.EpcHex + " | RSSI: " + tag.RssiDbm + " dBm");
// Dispatches directly to SAP / Tally / SQL Database queue
await erpBridge.PushBatchAsync(tag);
}Hardware wiring specifications for connecting Garment AM Frequency Anti-theft Solution for Clothing Stores 58khz Am Antenna Long Detection Range Alarming Gate directly to optical photocell sensors, light stacks, and Siemens / Allen-Bradley PLCs.
Instead of keeping the RFID scanner running 24/7 (which overheats equipment and reads distant tags accidentally), a physical light beam sensor (photocell) tells the reader to scan only when a box arrives on the conveyor belt. If the box has a missing or wrong tag, the reader instantly trips a red light and signals a robotic arm or pneumatic pusher to divert the box.
| Register Address | Data Type | Access | Description & PLC Interpretation |
|---|---|---|---|
| 40001 | UINT16 | Read-Only | Reader Status: 0=Idle, 1=Scanning Active, 2=Fault/Overheat |
| 40002 | UINT16 | Read-Only | Total Unique Tags Captured in Current Trigger Cycle |
| 40003–40008 | 6 x UINT16 | Read-Only | 96-bit Hex EPC Data of Primary Verified Tag |
| 40009 | INT16 | Read-Only | Peak Signal RSSI (e.g. -48 dBm) for RF coverage tuning |
| 40101 | UINT16 | Read/Write | PLC Software Trigger Override: Write 1 to start inventory cycle |
Real field testing and operational validation demonstration conducted at our lab & partner facilities. Demonstrates read distance, physical durability, and live interrogation.
Every unit is factory-inspected, serialized, and paired with essential deployment accessories.
Factory calibrated and tested
Pre-crimped shielded cables
Standard, on-metal, and hanging inlays
Local REST API, MQTT broker & ERP sync
Direct session with senior RF implementation engineer
We offer paid 14-day on-site pilot trials with demo setup in Delhi-NCR (minimum ~₹50,000+ demo POC fee + refundable hardware deposit). Remote-assisted starter packs available across India.
Based on 2 verified client reviews.
"Installed two pairs of the Elefine 58kHz gates at our multi-floor garment showroom in South Extension, Delhi. Shoplifting shrinkage dropped to zero in the first month."
"The ivory finish matches our boutique's luxury interior aesthetics perfectly. Wide detection aisle allows easy customer walk-through without feeling cramped."
Use our free interactive calculators and simulators to model RF physics, calculate link budgets, estimate ROI, and configure EPC tags.
Calculate reader EIRP (+36 dBm WPC), antenna gain (dBi), path loss, and receiver sensitivity threshold (-86 dBm).
Model 3dB azimuth/elevation beam footprints and coverage radii for warehouse dock doors and conveyor gates.
Estimate tag dwell times, maximum conveyor transit speeds (m/s), and read rates under dense tag environments.
Unit Price
₹90,000
