Asset Tracking
UHF Inlay Labels
EPC Gen 2 Paper / PET Inlays for Cartons, Apparel & Document Tagging
Contact for Quote
★ 4.8
Description

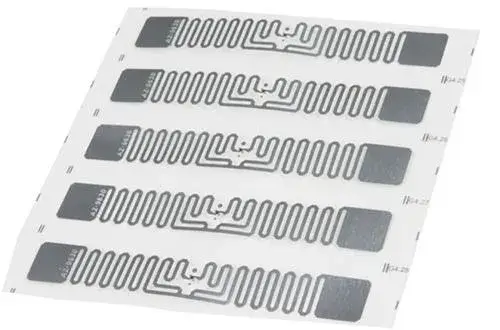

The UHF Inlay Labels are thin, flexible passive tags that serve as the workhorse consumable of any UHF RFID deployment. Available in standard paper and PET face-stocks, they are ideal for thermal-transfer printing and encoding. They are optimized for free-air read ranges up to 8 meters on cartons, garments, books, and documents. Common dimensions include 70x17 mm, 97x27 mm, and 44x28 mm, with custom die-cuts available.
Specifications
- Chip Options
- Impinj Monza R6 / R6-P, Impinj M730 / M750, NXP UCODE 9
- Frequency
- 860–960 MHz (global UHF)
- Face Material
- Coated paper or PET (specify on order)
- Operating Temp.
- –25 °C to +70 °C
- Packaging
- Roll - 1,000 / 2,000 / 5,000 labels per roll (3" core)
- Protocol
- EPC Class 1 Gen 2 / ISO 18000-6C
- Adhesive
- Permanent acrylic, indoor-rated
- Read Range
- Up to 8 m in free air (chip and reader-dependent)
- Printable
- Yes — thermal transfer with resin or wax-resin ribbon
- Memory
- EPC 96/128/240 bit, TID 96 bit, User memory 32–128 bit
Customer Reviews
4.8
Based on 0 verified reviews
You can write a review now. You will be asked to login on submit.
LoginNo reviews yet
Be the first to review this product.
Questions
Can these labels be printed on standard printers?
They require an RFID-enabled thermal transfer printer (like Zebra ZT411 RFID) to encode the chip while printing.
Do these tags work on metal surfaces?
No, standard inlays will detune and fail on metal. For metal surfaces, please use our UHF Anti-Metal Tags.
Can I order pre-printed and encoded labels?
Yes, we offer custom pre-encoding and barcode printing services on bulk orders.
