Access Control Systems
HF PVC Cards
MIFARE / NTAG / ICODE Cards for Access Control, Payments & Identification
Description

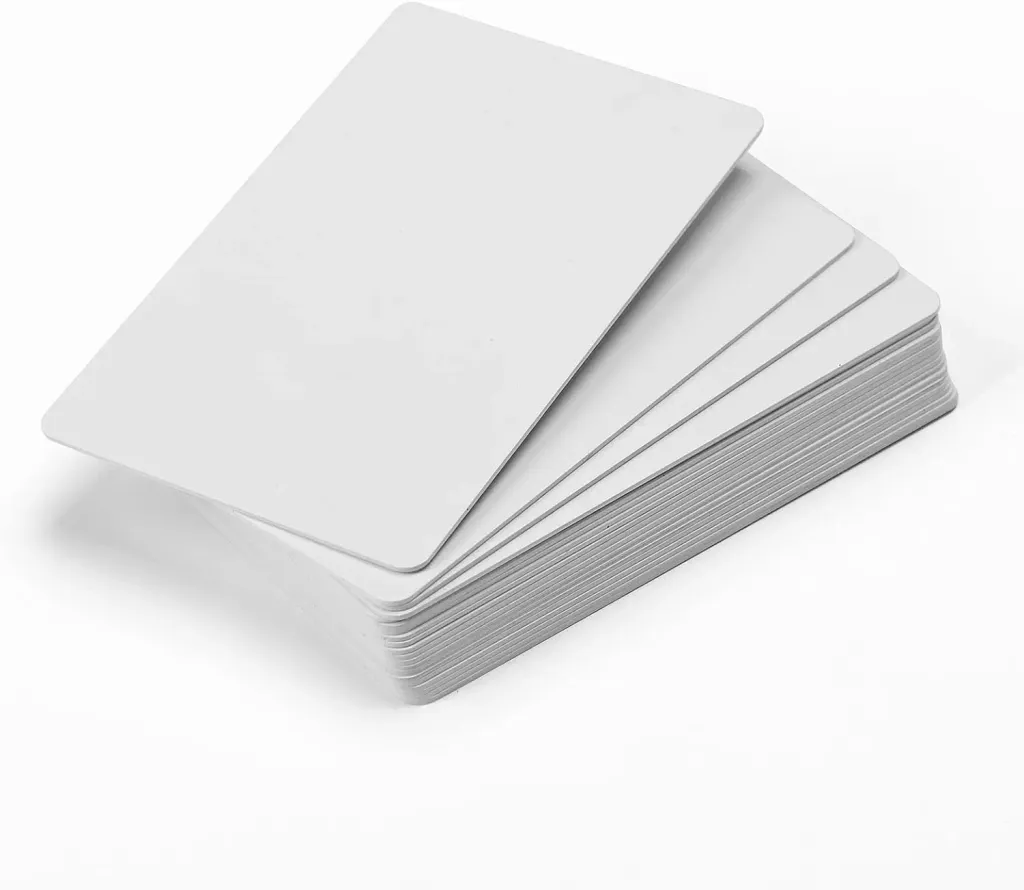

The HF PVC Cards are standard ISO CR80 cards equipped with 13.56 MHz High Frequency / NFC chips. This is the global standard for tap-to-access door locks, transit payments, cashless canteens, and membership cards. We supply a full range of chips: MIFARE Classic for legacy systems, MIFARE DESFire with AES-128 encryption for high-security installations, NTAG for smartphone readability, and ICODE SLIX for library memberships.
Specifications
- Optional
- Dual-frequency (HF + UHF in one card), magstripe, barcode, photo
- Read Range
- 0–10 cm (NFC tap distance)
- Protocols
- ISO 14443 A / B, ISO 15693, NFC Forum Types 1–5
- Memory
- 1 KB to 8 KB depending on chip
- Printability
- Direct-to-card dye-sub or thermal-transfer ID-card printers
- Security
- Crypto-1 (Classic), AES-128 (Plus / DESFire), per-app keys
- Dimensions
- 85.6 × 54 × 0.84 mm (ISO 7810 ID-1 / CR80)
- Chip Options
- MIFARE Classic 1K / 4K, MIFARE Plus, MIFARE DESFire EV2/EV3, NTAG 213 / 215 / 216, ICODE SLIX / SLIX2
- Frequency
- 13.56 MHz HF / NFC
- Operating Temp.
- –25 °C to +70 °C
- Material
- Layered PVC, glossy or matte finish
Customer Reviews
You can write a review now. You will be asked to login on submit.
LoginBe the first to review this product.
Questions
What is the range of these cards?
Which chip should I select for secure building access?
Do these cards work with mobile apps?
