UV-Resistant UHF RFID Solar Panel Asset Tracking Tag
10+ Year UV Resistant | 10m Range | MNRE Solar Farm Audits
Wholesale & custom volume pricing available. Get an instant quote below.
Enterprise Assurances
Need Free Validation Samples or Pre-Encoding?
Never buy tags in bulk without testing on your exact packaging. We dispatch sample packs within 24 hours, and offer factory-grade EPC/TID serialization and barcode printing.
Description
The UV-Resistant UHF RFID Solar Panel Asset Tracking Label (Model: U9-SOLAR-10040) is an ultra-durable, weather-sealed transponder developed specifically for solar EPC contractors, renewable energy asset managers, and solar farm O&M service providers. Powered by the high-sensitivity NXP UCODE 9 RAIN RFID IC, this label delivers an outstanding read range of up to 10 meters while surviving intense ultraviolet (UV) radiation, severe humidity, thermal cycling (-40°C to +85°C), and outdoor weathering.
1. Engineered for 10+ Year Outdoor Solar Life
Solar panels operate in harsh direct sunlight for 25+ years. Standard paper and low-grade PET labels fade, crack, and delaminate within months. The U9-SOLAR-10040 features a multi-layer UV-blocking polyimide/PET face sheet paired with an automotive-grade 3M acrylic adhesive that bonds permanently to anodized aluminum frames, tempered glass backs, and junction box plastics without lifting.
2. High Sensitivity RAIN RFID Performance
Operating across the global 860–960 MHz RAIN RFID band (tuned for Indian WPC 865–867 MHz), the chip features 96-bit EPC memory with fast auto-serialization. Ground crews equipped with handheld readers (such as the Chainway C72) can audit thousands of installed solar modules, record serial numbers, and verify warranty data from vehicle or walking speeds up to 10 meters away.
Specifications
- Model Number
- U9-SOLAR-10040
- Chipset IC
- NXP UCODE 9 RAIN RFID
- Operating Frequency
- 860 MHz to 960 MHz (Global RAIN / Indian WPC 865–867 MHz)
- Protocol Standard
- EPCglobal Gen2v2 / ISO 18000-63 EPC Gen2 (ISO 18000-6C)Air Interface865–867EPC Gen2 & ISO/IEC 18000-63 (RAIN RFID)
The universal ultra-high frequency (UHF) passive radio backscatter standard powering global retail, logistics, and asset tracking.
View Protocol Code & Specs - Read Sensitivity
- -24 dBm
- EPC Memory
- 96 Bits Auto-Serialized
- TID Memory
- 96 Bits (48-bit unique factory serial locked)
- Dimensions
- 100.0 mm × 40.0 mm × 0.4 mm
- Face Material
- UV-Stabilized Weatherproof Polyimide / Synthetic PET
- Adhesive
- High-Tack 3M Heavy-Duty Outdoor Acrylic Adhesive
- Read Range
- Up to 10.0 Meters (Fixed Portal / Handheld Readers)
- Operating Temperature
- -40°C to +85°C (-40°F to +185°F)
- UV & Weather Resistance
- 10+ Years Direct Outdoor Solar Exposure Rated
- Packaging Format
- Roll of 1,000 / 2,000 Pcs

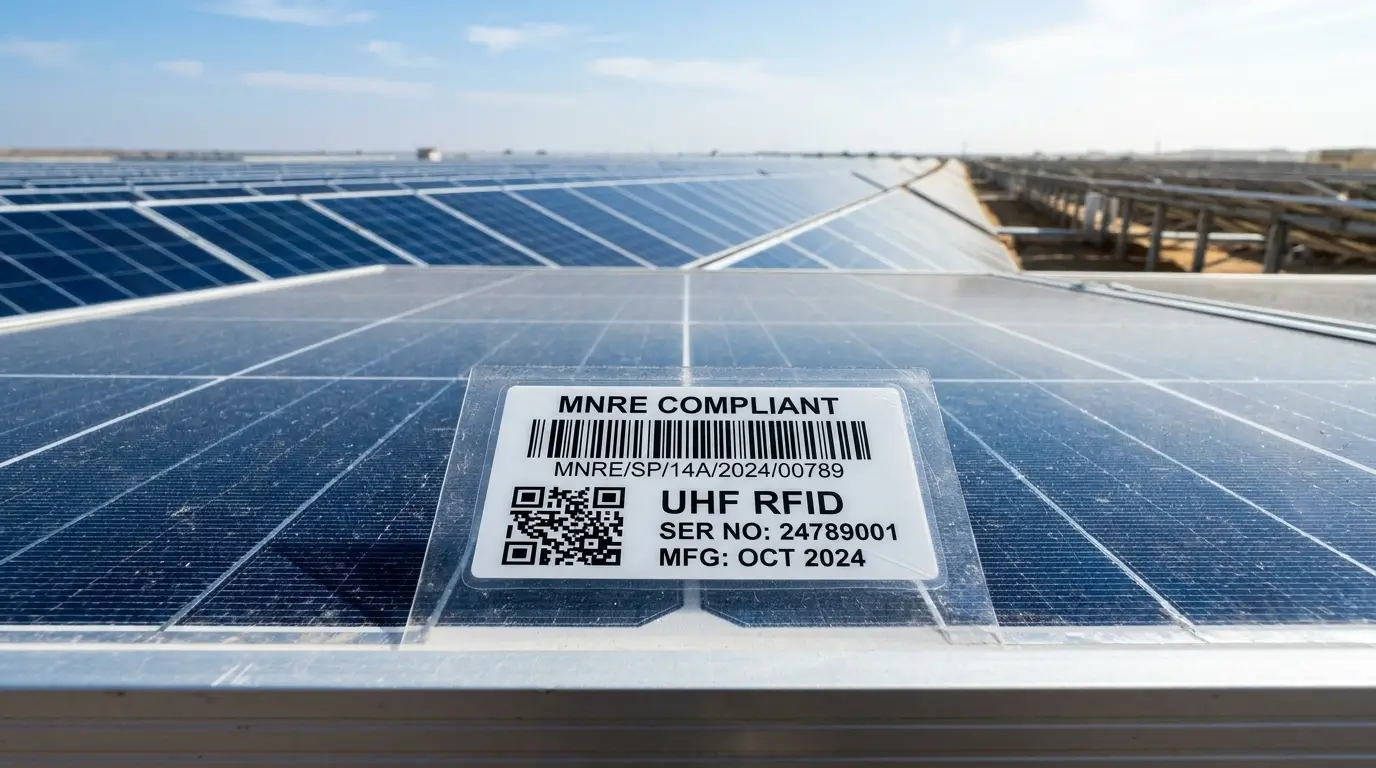

Watch UV-Resistant UHF RFID Solar Panel Asset Tracking Tag in Action
Real field testing and operational validation demonstration conducted at our lab & partner facilities. Demonstrates read distance, physical durability, and live interrogation.
What's in the Box & Hardware Blueprint
Every unit is factory-inspected, serialized, and paired with essential deployment accessories.
Pre-Tested Dielectric-Tuned UHF Inlays
Standard Roll / PackAlien Higgs-9 / Impinj Monza R6-P ICs
EPC Memory Bank Allocation Map
1 DocumentHeader, Filter, Partition & Serial structure
Thermal Transfer Ribbon Compatibility Guide
1 SheetRecommended resin/wax ribbon settings for Zebra printers
Sample On-Metal & High-Heat Swatches
Included Sample PackFor lab evaluation on metal & liquid containers
Need a 14-Day Physical On-Site Pilot Evaluation?
We offer paid 14-day on-site pilot trials with demo setup in Delhi-NCR (minimum ~₹50,000+ demo POC fee + refundable hardware deposit). Remote-assisted starter packs available across India.
Interactive RFID Engineering Tools & Calculators
Use our free interactive calculators and simulators to model RF physics, calculate link budgets, estimate ROI, and configure EPC tags.
RFID Specimen & Tube Cost Calculator
Model unit consumable economics for cryogenic (-196°C) and xylene-resistant diagnostic specimen labels.
RFID ROI & Turnaround Calculator
Calculate pre-analytical TAT reduction and sample accessioning time savings with 100-tube rack sweeps.
Project Budget & Hardware Estimator
Estimate turnkey laboratory automation, desktop readers, and bidirectional HL7/ASTM middleware integration costs.
Questions
Can this label withstand 10+ years of direct outdoor sunlight on solar farms?
Where should the RFID label be placed on a solar panel?
What read range can be achieved during field audits?
Can the label be pre-printed with QR codes and human-readable serials?
