Asset Tracking
HF Library Inlay Tags
ISO 15693 Stick-in-Book Inlays Purpose-Built for Libraries
Description
The HF Library Inlay Tags are thin, adhesive paper/PET tags specifically designed to paste inside book covers. Built on the ISO 15693 protocol and powered by industry-standard NXP ICODE SLIX silicon, they feature 1 KB of user memory to store the book's catalog ID, category, and circulation status. They fully support AFI and EAS bits for library anti-theft gates, making them compatible with all HF library kiosks, book return chutes, and security corridor systems.
Specifications
- Adhesive
- Permanent acrylic, paper-safe
- Protocol
- ISO 15693 / ISO 18000-3 Mode 1
- Memory
- 1024 bits user memory; AFI, DSFID, EAS bit fields
- Read Range
- 10–25 cm with reader pad, ~50 cm in HF gate field
- Anti-Theft
- AFI flag, EAS detection on supported gates
- Operating Temp.
- –25 °C to +70 °C
- Compatibility
- All major library management systems (SIP2 / NCIP)
- Frequency
- 13.56 MHz HF
- Form Factor
- Square paper inlay; common sizes 50 × 50 mm and 50 × 80 mm
- Chip
- NXP ICODE SLIX / SLIX2 (industry standard for libraries)
- Packaging

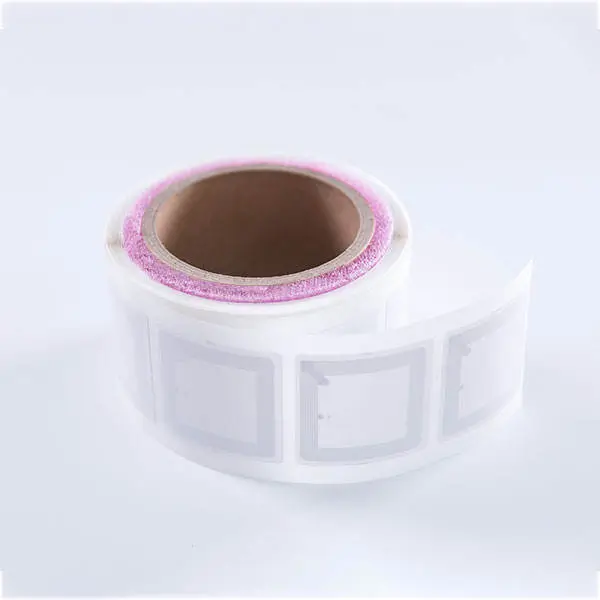

- Roll of 1,000 inlays (3" core)
Customer Reviews
You can write a review now. You will be asked to login on submit.
LoginBe the first to review this product.
Questions
Where are these tags usually placed on a book?
Can these tags be used with security gates?
How long does the data on the tag last?
Price
Contact for Quote
